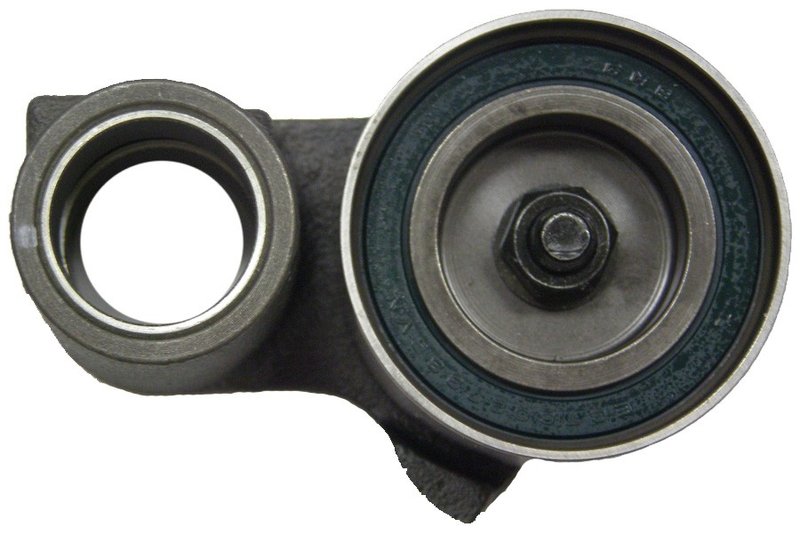

Cloyes 9-5508 Engine Timing Belt Tensioner Pulley - Front

Overview of Cloyes Timing Belt Tensioner Pulley 9-5508

The Cloyes Timing Belt Tensioner Pulley 9-5508 is engineered for specific Acura, Honda, and Saturn models, ensuring precise timing belt tension. Designed with durable steel construction, this gray pulley is built to maintain optimal belt alignment and tension without manual adjustment.

• Constructed from high-quality steel for durability
• Includes pulley but no shoe, spring, or bolts
• Dimensions: 3.69" length, 2.51" width, 2.16" outside diameter, 1.56" height
• Single mounting hole with 0.94" inside diameter
• Non-adjustable, specific fit for select Acura, Honda, and Saturn vehicles

About the Cloyes Timing Belt Tensioner Pulley Line

The Cloyes Timing Belt Tensioner Pulley product line focuses on delivering reliable valve train components designed to maintain proper timing belt tension. This line emphasizes precise fitment and robust materials, such as steel, to ensure consistent performance in engine timing systems. The 9-5508 part is a specific tensioner pulley within this line, tailored for compatibility with various Acura, Honda, and Saturn models.

Detailed Product Description

This engine timing belt tensioner pulley is manufactured from steel, providing strength and resistance to wear under engine operating conditions. The gray pulley included in the package measures 3.69 inches in length and 2.51 inches in width, with an outside diameter of 2.16 inches and a height of 1.56 inches. It features a single mounting hole with an inside diameter of 0.94 inches, designed for a secure and precise installation. The tensioner pulley is non-adjustable and does not include a shoe, spring, or mounting bolts, which should be sourced separately if required.

Compatible Vehicles and Applications

• Compatible with Acura models including MDX, RL, RLX, TL, TLX, TSX, and ZDX
• Fits Honda models such as Accord, Accord Crosstour, Crosstour, Odyssey, Passport, Pilot, RDX, and Ridgeline
• Suitable for Saturn Vue

Common Issues Addressed by This Timing Belt Tensioner Pulley

• Eliminates timing belt slack to prevent belt skipping or jumping teeth
• Reduces engine noise caused by worn or loose tensioners
• Prevents premature timing belt wear and potential engine damage
• Maintains proper valve timing for optimal engine performance
• Replaces faulty or damaged tensioner pulleys in specific Acura, Honda, and Saturn engines

Installation Notes and Tips

Installation requires removal of the old tensioner pulley and proper alignment with the timing belt system. Since this pulley is non-adjustable and does not include mounting bolts, ensure that compatible bolts are available and torque specifications are followed according to the vehicle manufacturer’s guidelines. It is recommended to inspect the timing belt and related components during installation for comprehensive maintenance.

Quality Assurance and Warranty

The Cloyes Timing Belt Tensioner Pulley 9-5508 is manufactured to meet OEM specifications for fit and function. While specific warranty details are not provided, Cloyes products typically adhere to industry standards for quality and durability. For warranty information, refer to the product documentation or contact the manufacturer directly.
