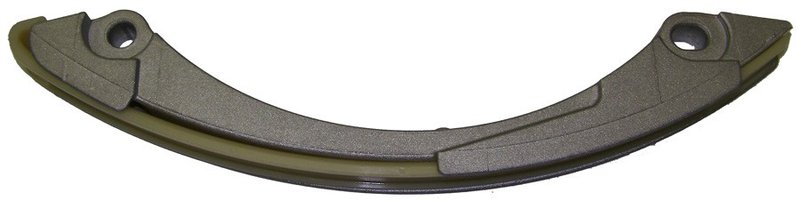

Cloyes 9-5510 Engine Timing Chain Guide - Left

Reliable Engine Timing Chain Guide for Chevrolet and GMC Vehicles

The Cloyes 9-5510 engine timing chain guide is designed specifically for select Chevrolet, GMC, Hummer, Isuzu, and Saab models. Engineered with durable nylon and aluminum materials, this chain guide ensures precise timing chain alignment and smooth operation for your vehicle's valve train system.

• Constructed from durable nylon and aluminum for long-lasting performance
• Includes shoe and mounting bracket for complete installation
• Specific fitment for Chevrolet 9-7x, GMC Canyon, Colorado, Envoy, and more
• Dimensions: 9 7/8" length, 0.79" width, 2.26" height
• Two mounting holes with inside diameters of 0.33" and 0.46"
• Color-coded yellow and gray for easy identification

Detailed Description of Cloyes 9-5510 Timing Chain Guide

The Cloyes 9-5510 timing chain guide is a critical component in maintaining proper timing chain tension and alignment within the engine's valve train. Made from a combination of nylon and aluminum, this guide offers a balance of strength and wear resistance. It comes with an integrated shoe and a mounting bracket, ensuring a secure fit without the need for additional bolts. The guide measures 9 7/8 inches in length, 0.79 inches in width, and 2.26 inches in height, designed to fit specific engine configurations found in Chevrolet 9-7x, GMC Canyon, Colorado, Envoy, Hummer H3 and H3T, Isuzu i-290 and i-370, and Saab models.

Applications and Common Issues Addressed

• Prevents timing chain slack and reduces chain noise
• Maintains proper valve timing for engine efficiency
• Reduces wear on timing chain and sprockets
• Helps avoid engine misfires caused by timing chain misalignment
• Supports smooth engine operation and longevity

Installation Notes and Tips

Installation of the Cloyes 9-5510 timing chain guide requires removal of the timing cover and careful alignment with the existing timing chain system. The included mounting bracket and shoe simplify the process, but bolts are not included and must be sourced separately. Ensure the mounting holes align correctly with the engine block, using the two provided holes with diameters of 0.33" and 0.46". It is recommended to inspect the timing chain and related components for wear during installation.

Quality Assurance and Warranty Information

Cloyes manufactures the 9-5510 timing chain guide to meet OEM specifications for fit and function. The use of nylon and aluminum materials provides durability under typical engine operating conditions. While specific warranty details are not provided, Cloyes products generally come with a limited warranty against manufacturing defects. For optimal performance, use this guide as a replacement part for the specified Chevrolet, GMC, Hummer, Isuzu, and Saab models.
