Home› Engine > Valve Train Components› Cloyes 9-5521 Engine Timing Chain Tensioner Guide - Right
Cloyes 9-5521 Engine Timing Chain Tensioner Guide - RightOE Quality 60-Day Returns
Part #: 9-5521

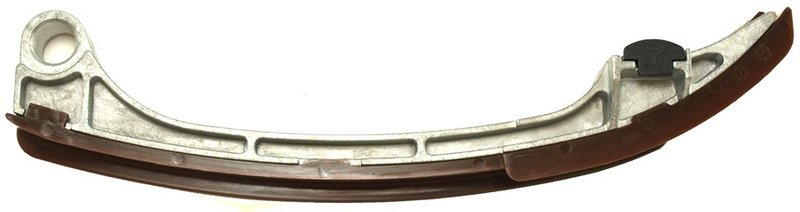

Cloyes 9-5521 Engine Timing Chain Tensioner Guide - Right

Right
60 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$33.10Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Scion, Toyota, Lexus, and Pontiac, xB, Matrix, HS250h, Corolla, Camry, Vibe, tC, RAV4, Solara, and Highlander
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Engine Timing Chain Tensioner Guide options

Cloyes 9-5521 Timing Chain Tensioner Guide

The Cloyes 9-5521 engine timing chain tensioner guide is built for specific Toyota, Scion, Lexus, and Pontiac applications that use a timing chain drive. It provides a stable track for the chain between the crankshaft and camshaft, helping maintain proper chain control in service.

Made with nylon and aluminum construction, this guide uses a shoe and bracket design for a direct-fit replacement on listed vehicles, including Toyota Camry, Corolla, RAV4, Solara, Highlander, Scion xB, and Scion tC applications.

Key Features

  • Part number: 9-5521
  • Engine timing chain tensioner guide for specific fitment
  • Nylon/aluminum construction for durability and low-noise operation
  • Shoe included
  • Bracket included
  • Specific fit design, not universal
  • Brown/gray finish
  • Mounting hole quantity: 1
  • Mount hole inside diameter: 0.60 in.
  • Length: 10 3/4 in.; width: 0.98 in.; height: 2.66 in.

Detailed Description

Cloyes 9-5521 is an OE-style timing chain guide designed for engines that rely on precise chain routing and tension control. Cloyes manufactures this guide using CAD-based design and advanced materials, then tests each part for function and durability to support consistent timing system performance. This part cross-references 95521 for the same application.

Compatible With 2001-2008 Toyota RAV4, 2001-2007 Toyota Highlander, 2002-2008 Toyota Solara, 2002-2010 Toyota Camry, 2005-2010 Scion tC, 2008-2015 Scion xB, 2009-2010 Pontiac Vibe, 2009-2012 Toyota Corolla, 2009-2013 Toyota Matrix, 2010-2012 Lexus HS250h, and 2011 Toyota Camry, right. The 9-5521 timing chain tensioner guide is a direct replacement choice for timing service on these listed vehicles.

What It Helps Address

  • Timing chain noise caused by worn guide surfaces
  • Chain tracking issues from damaged or fatigued guide material
  • Improper chain control during timing system service
  • Wear-related timing component replacement on high-mileage engines
  • Restoration of chain path support in listed Toyota, Scion, Lexus, and Pontiac applications

Installation Notes and Tips

Use this guide only on the specific applications listed in the fitment data. When replacing the timing chain, Cloyes recommends replacing the chain tensioner, sprockets, and guides together so the timing system components work as a matched set. Verify engine code, position, and application details before installation, especially for the 2011 Toyota Camry right-side fitment.

Quality Assurance

Cloyes designs and manufactures timing components with advanced materials and application-specific engineering. The 9-5521 is tested for function and durability to meet or exceed OEM performance requirements for the listed vehicles.

BrandCloyes
Part Number9-5521
Bolts IncludedNo
Bracket IncludedYes
Chain TypeTensioner Guide
ColorBrown/Gray
Height2.66"
Length10 3/4"
Manually AdjustableNo
MaterialNylon/Aluminum
Mount Hole Inside Diameter0.60"
Mounting Hole Quantity1.0
Shoe IncludedYes
Universal Or Specific FitSpecific
Width0.98"

This part fits 60 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2015ScionxB2.4LL4N/A
2014ScionxB2.4LL4N/A
2013ScionxB2.4LL4N/A
2013ToyotaMatrix2.4LL4N/A
2012LexusHS250h2.4LL4N/A
2012ScionxB2.4LL4N/A
2012ToyotaCorolla2.4LL4N/A
2012ToyotaMatrix2.4LL4N/A
2011LexusHS250h2.4LL4N/A
2011ScionxB2.4LL4N/A
2011ToyotaCamry2.4LL4Right
2011ToyotaCorolla2.4LL4N/A
2011ToyotaMatrix2.4LL4N/A
2010LexusHS250h2.4LL4N/A
2010PontiacVibe2.4LL4N/A
2010SciontC2.4LL4N/A
2010ScionxB2.4LL4N/A
2010ToyotaCamry2.4LL4N/A
2010ToyotaCorolla2.4LL4N/A
2010ToyotaMatrix2.4LL4N/A
2009PontiacVibe2.4LL4N/A
2009SciontC2.4LL4N/A
2009ScionxB2.4LL4N/A
2009ToyotaCamry2.4LL4N/A
2009ToyotaCorolla2.4LL4N/A
2009ToyotaMatrix2.4LL4N/A
2008SciontC2.4LL4N/A
2008ScionxB2.4LL4N/A
2008ToyotaCamry2.4LL4N/A
2008ToyotaRAV42.4LL4N/A
2008ToyotaSolara2.4LL4N/A
2007SciontC2.4LL4N/A
2007ToyotaCamry2.4LL4N/A
2007ToyotaHighlander2.4LL4N/A
2007ToyotaRAV42.4LL4N/A
2007ToyotaSolara2.4LL4N/A
2006SciontC2.4LL4N/A
2006ToyotaCamry2.4LL4N/A
2006ToyotaHighlander2.4LL4N/A
2006ToyotaRAV42.4LL4N/A
2006ToyotaSolara2.4LL4N/A
2005SciontC2.4LL4N/A
2005ToyotaCamry2.4LL4N/A
2005ToyotaHighlander2.4LL4N/A
2005ToyotaRAV42.4LL4N/A
2005ToyotaSolara2.4LL4N/A
2004ToyotaCamry2.4LL4N/A
2004ToyotaHighlander2.4LL4N/A
2004ToyotaRAV42.4LL4N/A
2004ToyotaSolara2.4LL4N/A
2003ToyotaCamry2.4LL4N/A
2003ToyotaHighlander2.4LL4N/A
2003ToyotaRAV42.0LL4N/A
2003ToyotaSolara2.4LL4N/A
2002ToyotaCamry2.4LL4N/A
2002ToyotaHighlander2.4LL4N/A
2002ToyotaRAV42.0LL4N/A
2002ToyotaSolara2.4LL4N/A
2001ToyotaHighlander2.4LL4N/A
2001ToyotaRAV42.0LL4N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

135590H010135590H030135592801095521

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
