Cloyes 9-5522 Engine Timing Chain Guide - Right

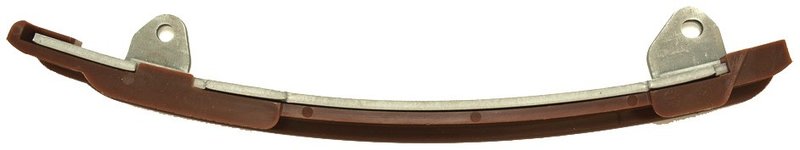

Cloyes Timing Chain Guide 9-5522

Cloyes 9-5522 is a right-side engine timing chain guide for specific Toyota, Scion, Lexus, and Pontiac applications. Built with a nylon and steel construction and a fixed-fit design, it helps keep the timing chain aligned for consistent valve timing and quieter operation.

Key Features

• Engine timing chain guide for the right side
• Nylon/steel construction for strength and wear resistance
• Shoe included for chain contact surface support
• Bracket included for proper mounting
• Specific fit design for application accuracy
• Length: 11 1/8 in.; width: 0.96 in.; height: 1.96 in.
• Two mounting holes with 0.25 in./0.31 in. inside diameter
• Brown/gray finish

Detailed Description

This Cloyes timing chain guide is engineered to meet or exceed OEM performance requirements and is manufactured using CAD-based design and advanced materials. The nylon and steel construction helps provide a stable chain path, while the included shoe and bracket support proper chain tracking in the engine’s valve train. Cloyes 9-5522 is a specific-fit engine timing chain guide for right-side applications in vehicles such as the Toyota Camry, Toyota Corolla, Toyota RAV4, Toyota Highlander, Toyota Solara, Toyota Matrix, Scion xB, Scion tC, Lexus HS250h, and Pontiac Vibe.

This part cross-references 95522 and 135610H010 for the same application.

What This Part Helps Address

• Timing chain noise from worn guide surfaces
• Chain misalignment in the valve train
• Excessive wear on timing components
• Inconsistent chain tracking on the right side
• Service needs during timing chain replacement on Toyota, Scion, Lexus, and Pontiac engines

Installation Notes and Tips

Install this guide only on the specified right-side application and verify engine fitment before service. Cloyes recommends replacing the chain tensioner, sprockets, and guides together when servicing the timing chain, since these components work together to maintain proper chain tension and alignment. Confirm mounting hole size and guide orientation against the original part before installation.

Quality Assurance

Cloyes designs and manufactures timing components with advanced materials and tests each part for function and durability to support reliable engine operation. Refer to the application catalog for vehicle-specific confirmation before ordering. Fits 2002-2011 Toyota Camry, right; Fits 2009-2012 Toyota Corolla, right; Fits 2001-2008 Toyota RAV4, right; Fits 2001-2007 Toyota Highlander, right; Fits 2002-2008 Toyota Solara, right; Fits 2009-2013 Toyota Matrix, right; Fits 2008-2015 Scion xB, right; Fits 2005-2010 Scion tC, right; Fits 2010-2012 Lexus HS250h, right; Fits 2009-2010 Pontiac Vibe, right.
