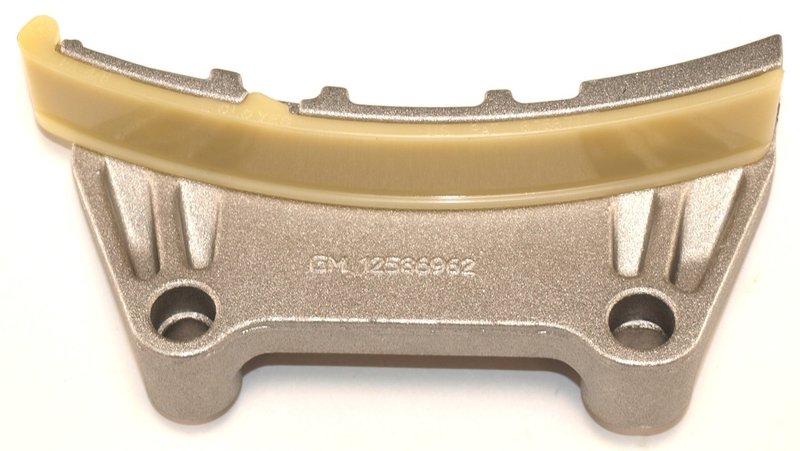

Cloyes 9-5530 Engine Timing Chain Guide - Upper

Overview of Cloyes Timing Chain Guide 9-5530

The Cloyes Timing Chain Guide 9-5530 is engineered for precise valve train operation in select Buick, Cadillac, Chevrolet, GMC, Pontiac, Saab, Saturn, and Suzuki models. Designed with durable nylon and aluminum materials, this specific-fit engine timing chain guide ensures reliable chain tension and alignment for optimal engine performance.

• Constructed from nylon and aluminum for strength and durability
• Includes shoe and mounting bracket for complete installation
• Specific fitment for various Buick, Cadillac, Chevrolet, GMC, Pontiac, Saab, Saturn, and Suzuki vehicles
• Dimensions: 4.81 inches length, 1.49 inches width, 2.05 inches height
• Two mounting holes with inside diameters of 0.32 and 0.39 inches
• Color coded brown/gray for easy identification
• Part number 9-5530 for accurate replacement

About the Cloyes Timing Chain Guide Product Line

The Cloyes Timing Chain Guide product line focuses on delivering precision-engineered components for engine valve train systems. This line is designed to maintain proper timing chain tension and alignment, reducing wear and improving engine reliability. The 9-5530 guide is part of this line, providing a specific fit and durable construction to meet OEM standards for the listed vehicle makes and models.

Detailed Product Description

The Cloyes 9-5530 timing chain guide is a non-manually adjustable chain guide constructed from a combination of nylon and aluminum, offering a balance of lightweight durability and resistance to wear. It includes a shoe and a mounting bracket, but bolts are not included. The guide measures 4.81 inches in length, 1.49 inches in width, and 2.05 inches in height, with two mounting holes sized at 0.32 and 0.39 inches inside diameter. Its brown/gray color helps with identification during installation. This part is designed specifically for certain models such as the Buick LaCrosse, Cadillac CTS, Chevrolet Camaro, GMC Terrain, and Suzuki Grand Vitara, among others.

Common Applications and Issues Addressed

• Maintains proper timing chain tension to prevent chain slack
• Reduces engine noise caused by worn or loose timing chains
• Prevents premature wear of timing chain components
• Ensures accurate valve timing for engine efficiency
• Replaces damaged or worn factory timing chain guides

Installation Notes and Tips

• Verify vehicle compatibility using the part number 9-5530 before installation
• Ensure the mounting bracket and shoe are properly aligned with the timing chain path
• Use OEM or recommended bolts as they are not included with this guide
• Inspect related timing components for wear during installation
• Follow manufacturer torque specifications for mounting bolts

Quality Assurance and Warranty

Cloyes timing chain guides are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. While specific warranty details for part number 9-5530 are not provided here, Cloyes products typically come with a limited warranty against defects in material and workmanship. It is recommended to consult the product documentation or supplier for exact warranty terms.
