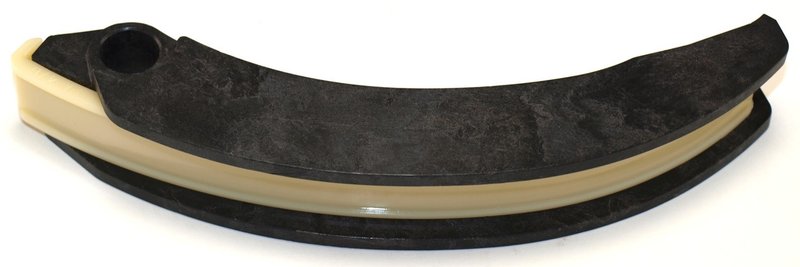

Cloyes 9-5534 Engine Timing Chain Tensioner Guide - Left

Reliable Timing Chain Tensioner Guide for Select GM and Suzuki Models

The Cloyes Timing Chain Tensioner Guide 9-5534 is engineered to maintain optimal timing chain tension in various Buick, Cadillac, Chevrolet, GMC, Pontiac, Saab, Saturn, and Suzuki vehicles. Designed with durable nylon material and a specific fitment, this tensioner guide ensures consistent engine valve train performance.

• Constructed from durable nylon for long-lasting wear resistance
• Includes shoe and bracket for complete installation
• Measures 6 3/4 inches in length, 1.00 inch in width, and 1.88 inches in height
• Designed for specific fitment with one mounting hole (0.52 inch inside diameter)
• Compatible with multiple models including Chevrolet Camaro, Buick LaCrosse, Cadillac CTS, and Suzuki Grand Vitara

About the Cloyes Timing Chain Tensioner Guide Product Line

The Cloyes Timing Chain Tensioner Guide product line focuses on precision-engineered components that maintain proper timing chain tension and alignment. This guide, part number 9-5534, is designed to work seamlessly with the engine valve train system, providing reliable chain guidance and reducing wear on critical engine parts. The inclusion of a shoe and bracket ensures a secure fit and proper function within the timing chain assembly.

Detailed Product Description

This engine timing chain tensioner guide is made from high-quality nylon, offering resistance to heat and wear within the engine environment. The guide is not manually adjustable, which ensures consistent tension without the need for frequent adjustments. Its yellow and black color coding aids in identification during installation. The part includes a shoe and bracket but does not come with bolts, requiring separate hardware for mounting. The single mounting hole with a 0.52-inch inside diameter is designed for precise alignment in compatible engines.

Common Applications and Issues Addressed

• Prevents timing chain slack and reduces chain noise
• Helps avoid premature wear of timing chain components
• Maintains proper valve timing for engine performance
• Reduces risk of engine misfires caused by timing chain issues
• Supports smooth operation in specific Buick, Cadillac, Chevrolet, GMC, Pontiac, Saab, Saturn, and Suzuki models

Installation Notes and Tips

Installation requires removal of the timing chain cover and careful alignment of the tensioner guide with the timing chain. Since bolts are not included, ensure you have the correct mounting hardware before beginning installation. The guide is designed for specific fitment, so verify compatibility with your vehicle’s make and model, such as the Chevrolet Camaro or Buick LaCrosse. Follow manufacturer torque specifications for mounting bolts to avoid damage.

Quality Assurance and Warranty

Cloyes parts are manufactured to meet or exceed OEM specifications for durability and fit. The Timing Chain Tensioner Guide 9-5534 undergoes rigorous quality control to ensure reliable performance. Warranty details should be confirmed with the original parts provider or vehicle manufacturer.
