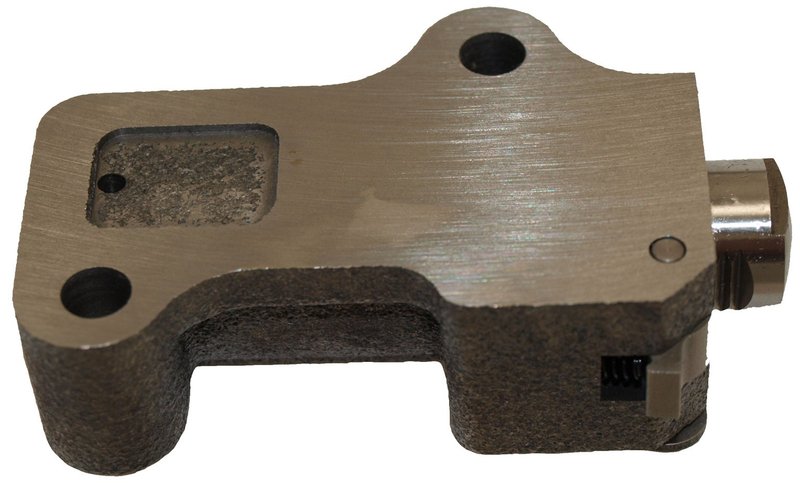

Cloyes 9-5574 Engine Timing Chain Tensioner - Right

Reliable Timing Chain Tensioner for Acura and Honda Vehicles

The Cloyes Timing Chain Tensioner 9-5574 is engineered to maintain precise timing chain tension in select Acura and Honda models. Designed specifically for vehicles like the Accord, Civic, CR-V, Element, RSX, and TSX, this tensioner ensures consistent engine performance and timing accuracy.

• Constructed from durable cast material for long-lasting strength
• Hydraulic/spring chain type for optimal tension control
• Activation pin mechanism for reliable operation
• Specific fitment for Acura and Honda models including Accord, Civic, CR-V, Element, RSX, and TSX
• Includes spring but does not require manual adjustment
• Compact dimensions: 1.60 inches width and 0.83 inches height
• Gray color finish with two mounting holes (0.25 inch diameter each)

About the Cloyes Timing Chain Tensioner Product Line

The Cloyes Timing Chain Tensioner line focuses on delivering precise tension control for engine timing chains, critical for maintaining valve train synchronization. This product line features hydraulic and spring mechanisms designed to reduce chain slack and wear, contributing to engine reliability. The 9-5574 model exemplifies this approach with a non-adjustable, activation pin design tailored for specific Acura and Honda applications.

Detailed Product Description

The Cloyes 9-5574 timing chain tensioner is a cast component designed to fit specific Acura and Honda vehicles, including popular models such as the Accord, Civic, CR-V, Element, RSX, and TSX. Its hydraulic/spring chain type mechanism automatically maintains proper chain tension without the need for manual adjustment. The activation pin ensures timely engagement, while the gray finish and compact size allow for seamless integration into the engine valve train assembly. This tensioner features two mounting holes with a 0.25-inch inside diameter, facilitating secure installation without included bolts.

Common Applications and Issues Addressed

• Prevents timing chain slack that can cause engine misfires or rough idling
• Reduces risk of premature chain wear and elongation
• Helps maintain accurate valve timing for optimal engine performance
• Addresses noise issues related to loose timing chains
• Supports engine longevity by ensuring consistent chain tension

Installation Notes and Tips

Installation of the Cloyes 9-5574 timing chain tensioner requires compatibility with specific Acura and Honda models. Ensure the engine is properly supported and timing components are aligned before removal of the old tensioner. Note that bolts are not included, so original hardware or appropriate replacements should be used. The tensioner is not manually adjustable, so proper seating and activation pin engagement are critical during installation.

Quality Assurance and Warranty

Cloyes timing chain tensioners are manufactured to meet OEM specifications, providing reliable performance and durability. The 9-5574 model undergoes rigorous quality control to ensure fitment accuracy and functional integrity. Warranty coverage details should be confirmed with the original equipment manufacturer or distributor.
