Part #: 9-5577

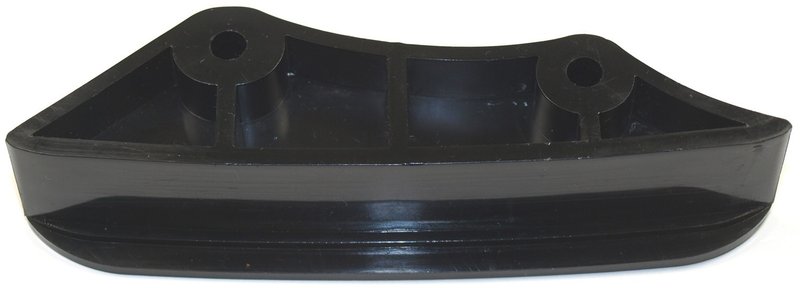

Cloyes 9-5577 Engine Timing Chain Guide - Upper

Upper
⚙️ 138 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$14.34Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Lexus and Toyota, ES350, GS450h, IS300, RC300, Avalon, IS350, Camry, Highlander, Sienna, Venza, GS350, IS250, RX350, RX450h, RAV4, and GS300
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Engine Timing Chain Guide options

Overview of Cloyes Timing Chain Guide 9-5577

The Cloyes Timing Chain Guide 9-5577 is engineered for precise fitment in select Lexus and Toyota models. Designed with durable nylon material, this specific engine timing chain guide ensures reliable chain alignment and tension for optimal valve train performance.

  • Constructed from high-quality black nylon for durability
  • Includes shoe and mounting bracket for complete installation
  • Measures 4.29 inches in length, 0.90 inches in width, and 1.35 inches in height
  • Features two mounting holes with 0.19 inch inside diameter each
  • Specific fit for Lexus and Toyota models including Avalon, Camry, ES350, GS series, Highlander, IS series, RAV4, RC series, RX series, Sienna, and Venza

Detailed Product Description

This Cloyes Timing Chain Guide from the Timing Chain Guide product line is designed to maintain proper timing chain alignment and reduce chain vibration in the engine's valve train system. Made from durable nylon, the guide offers resistance to wear and heat, contributing to the longevity of the timing chain assembly. The included shoe and bracket facilitate secure mounting, ensuring the guide remains in place under engine operating conditions. The dimensions of 4.29" length, 0.90" width, and 1.35" height are tailored for specific engine configurations, providing a precise fit for the listed Lexus and Toyota vehicles.

Compatible Vehicles and Applications

This timing chain guide is compatible with a range of Lexus and Toyota models, including but not limited to Avalon, Camry, ES350, GS300, GS350, GS450h, Highlander, IS250, IS300, IS350, RAV4, RC300, RC350, RX350, RX450h, Sienna, and Venza. The part number 9-5577 corresponds specifically to these applications, ensuring proper fit and function within the engine valve train components.

Common Issues Addressed by This Timing Chain Guide

  • Prevents excessive timing chain slack and noise
  • Reduces risk of timing chain misalignment and engine timing errors
  • Minimizes wear on timing chain and sprockets
  • Helps avoid potential engine performance issues related to valve timing
  • Supports smooth engine operation and longevity

Installation Notes and Tips

Installation of the Cloyes Timing Chain Guide 9-5577 requires removal of the timing cover and careful handling of the timing chain assembly. The included bracket and shoe simplify mounting, but bolts are not included and must be sourced separately. Ensure the mounting holes align correctly with the engine block, and verify the guide’s position to maintain proper chain tension. It is recommended to follow the vehicle manufacturer’s service manual for torque specifications and installation procedures.

Quality Assurance and Warranty

Cloyes manufactures this timing chain guide to meet OEM specifications, using durable nylon material for consistent performance. While specific warranty details are not provided here, Cloyes products typically come with a limited warranty against defects in material and workmanship. For warranty information, consult the product documentation or contact the manufacturer directly.

BrandCloyes
Part Number9-5577
Bolts IncludedNo
Bracket IncludedYes
Chain TypeChain Guide
ColorBlack
Height1.35"
Length4.29"
MaterialNylon
Mount Hole Inside Diameter0.19"/0.19"
Mounting Hole Quantity2.0
Shoe IncludedYes
Universal Or Specific FitSpecific
Width0.90"
