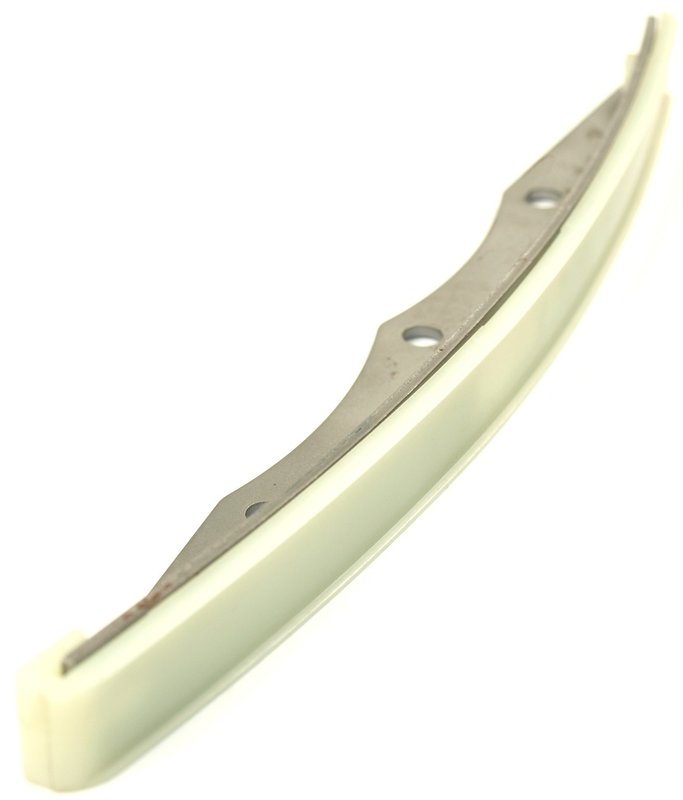

Cloyes 9-5593 Engine Timing Chain Guide - Center Upper

Reliable Engine Timing Chain Guide for Nissan Vehicles

The Cloyes 9-5593 engine timing chain guide is designed specifically for Nissan Altima, Maxima, and Quest models. Constructed from durable nylon and steel materials, this chain guide ensures precise timing chain alignment and smooth engine operation.

• Material: Nylon and steel construction for strength and durability
• Includes shoe and mounting bracket for complete installation
• Length: 9 7/8 inches, Width: 0.73 inches, Height: 1.20 inches
• Color: White and gray for easy identification
• Specific fitment for Nissan Altima, Maxima, and Quest
• Three mounting holes with inside diameters of 0.26, 0.28, and 0.32 inches
• Part number 9-5593 ensures correct replacement component

Durable Construction and Precise Fitment

The Cloyes 9-5593 timing chain guide combines nylon and steel materials to provide a balance of flexibility and strength. The included shoe reduces chain wear and noise, while the bracket allows secure mounting in the engine valve train assembly. Designed specifically for Nissan Altima, Maxima, and Quest models, this guide matches OEM specifications to maintain proper timing chain tension and alignment. Its dimensions—9 7/8 inches in length, 0.73 inches in width, and 1.20 inches in height—ensure a precise fit within the engine compartment.

Purpose and Common Issues Addressed

• Prevents timing chain slack and misalignment
• Reduces engine noise caused by worn or damaged guides
• Minimizes premature wear on timing chain components
• Helps maintain accurate valve timing for optimal engine performance
• Replaces broken or cracked chain guides to avoid engine damage

Installation Notes and Tips

Installation of the Cloyes 9-5593 timing chain guide requires removal of the timing cover and careful handling of the timing chain components. The included bracket and shoe simplify mounting, but bolts are not included and must be sourced separately. Ensure all mounting holes align correctly with the engine block, and verify the chain guide is properly seated to avoid tension issues. It is recommended to consult the vehicle’s service manual for torque specifications and installation procedures specific to Nissan Altima, Maxima, and Quest models.

Quality Assurance and Warranty Information

Cloyes manufactures the 9-5593 timing chain guide to meet or exceed OEM standards for durability and performance. The combination of nylon and steel materials provides long-lasting service life under normal operating conditions. While specific warranty details are not provided, Cloyes products typically come with a limited warranty against manufacturing defects. For detailed warranty information, refer to Cloyes documentation or contact the manufacturer directly.
