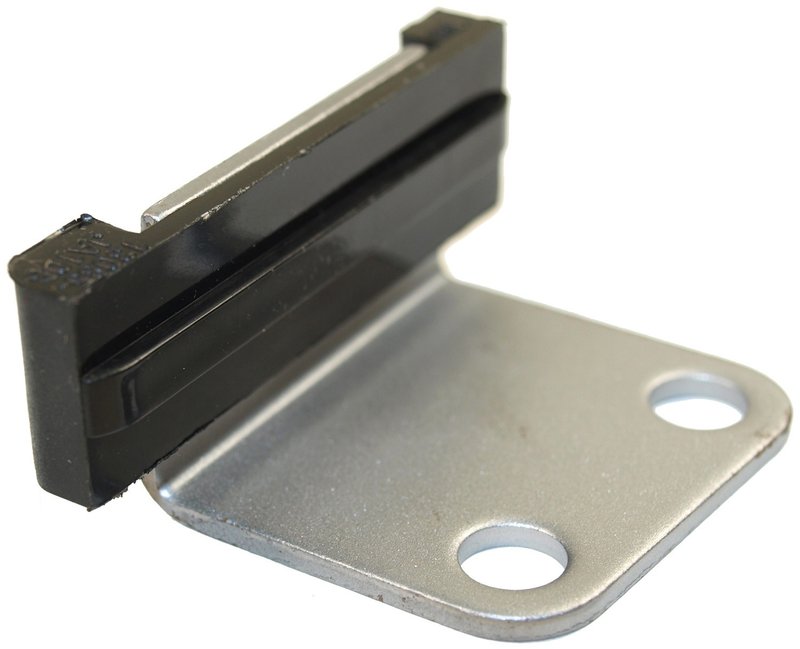

Cloyes 9-5594 Engine Timing Chain Guide - Left

Cloyes Timing Chain Guide for Nissan and INFINITI

Cloyes 9-5594 is a specific-fit engine timing chain guide for the left side of select Nissan and INFINITI applications. Built with a nylon and steel construction, it uses a guide shoe and bracket to help maintain proper timing chain tracking in the valve train.

Key Features

• Engine timing chain guide for the left side
• Nylon/steel construction for durable chain contact
• Guide shoe included
• Bracket included
• Specific fit for application-matched installation
• Black/gray finish
• Dimensions: 2.45 in. length, 1.00 in. width, 1.62 in. height
• Two mounting holes with 0.33 in. inside diameter

Product Details

The Cloyes Timing Chain Guide line is engineered to meet or exceed OEM performance requirements and is manufactured using CAD-designed components and advanced materials. Part number 9-5594 is a timing chain guide that helps route the chain between the crankshaft and camshaft, supporting stable chain movement in the engine’s valve train. Cloyes recommends replacing the chain tensioner, sprockets, and guides together when servicing the timing chain system. This part cross-references 95594 for the same application.

Compatible With select Nissan Maxima, Murano, Altima, Quest, Pathfinder, 350Z, and INFINITI G35, G25, FX35, M35, I35, JX35, and QX60 applications. Fits 2020-2021 Nissan Maxima, left; Fits 2020-2021 Nissan Murano, left; Fits 2016-2019 Nissan Maxima, left; Fits 2009-2014 Nissan Maxima, left; Fits 2002-2003 Nissan Maxima, left; Fits 2003-2019 Nissan Murano, left; Fits 2007-2018 Nissan Altima, left; Fits 2017 Nissan Quest, left; Fits 2011-2015 Nissan Quest, left; Fits 2014-2016 INFINITI QX60, left; Fits 2013-2016 Nissan Pathfinder, left; Fits 2016 Nissan Quest, left, to 7/1/2016; Fits 2013 INFINITI JX35, left; Fits 2011-2012 INFINITI G25, left; Fits 2003-2008 INFINITI FX35, left; Fits 2006-2008 INFINITI M35, left; Fits 2003-2007 INFINITI G35, left; Fits 2003-2007 Nissan 350Z, left; Fits 2002-2004 INFINITI I35, left.

Common Timing Chain Issues It Can Address

• Worn or damaged timing chain guide surface
• Chain noise from excessive guide wear
• Improper chain tracking in the valve train
• Timing system service on high-mileage Nissan and INFINITI engines
• Replacement of a left-side guide during timing chain repair

Installation Notes and Tips

Verify engine code, model year, and left-side application before installation. Inspect the timing chain, tensioner, and sprockets for wear during service, since these components work together in the timing system. Confirm bracket and mounting-hole alignment against the original part before assembly.

Quality Assurance

Cloyes manufactures timing components with CAD-designed engineering and advanced materials, and each part is tested for function and durability to support consistent engine operation. The Timing Chain Guide line is built to meet or exceed OEM performance requirements.
