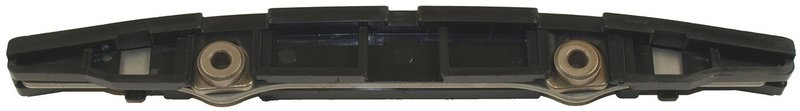

Cloyes 9-5597 Engine Timing Chain Guide - Center Upper or Upper

Overview of Cloyes Timing Chain Guide 9-5597

The Cloyes Timing Chain Guide 9-5597 is engineered for specific Nissan and INFINITI models, providing reliable support for the engine timing chain. Constructed from durable nylon and steel, this guide ensures consistent chain alignment and tension for optimal valve train performance.

• Material: Nylon and steel construction for durability
• Includes shoe and mounting bracket for complete installation
• Length: 10 1/2 inches, Width: 0.94 inches, Height: 1.00 inch
• Designed for specific fitment on Nissan and INFINITI vehicles
• Two mounting holes with 0.27 inch inside diameter for secure attachment
• Color: Black for corrosion resistance and visual inspection

About the Cloyes Timing Chain Guide Product Line

The Cloyes Timing Chain Guide product line focuses on precision-engineered components that maintain proper timing chain alignment and tension. This specific guide, part number 9-5597, is designed to meet OEM specifications for valve train components, ensuring compatibility and reliable operation within the engine's timing system.

Detailed Product Description

This engine timing chain guide is crafted from a combination of nylon and steel materials, providing a balance of strength and wear resistance. The included shoe and bracket facilitate proper chain guidance and mounting, reducing the risk of chain slack or misalignment. Measuring 10 1/2 inches in length, with a width of 0.94 inches and height of 1.00 inch, it fits precisely within the valve train assembly of select Nissan and INFINITI models such as the 350Z, 370Z, Altima, Maxima, Murano, Pathfinder, and various Q-series vehicles.

Common Applications and Problem Resolution

• Prevents timing chain slack and reduces chain noise
• Maintains proper valve timing for engine efficiency
• Replaces worn or damaged timing chain guides to avoid engine damage
• Supports smooth engine operation by stabilizing the timing chain
• Addresses issues related to chain misalignment and premature wear

Installation Notes and Tips

Installation requires removal of the timing cover and careful alignment of the guide with the timing chain. The included bracket and two mounting holes ensure secure attachment; however, bolts are not included and must be sourced separately. It is recommended to inspect the timing chain and related components during installation to ensure overall system integrity.

Quality Assurance and Warranty

Cloyes timing chain guides are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. While specific warranty details for part number 9-5597 are not provided, Cloyes products typically come with a limited warranty against defects in materials and workmanship. Refer to the manufacturer’s warranty policy for complete information.
