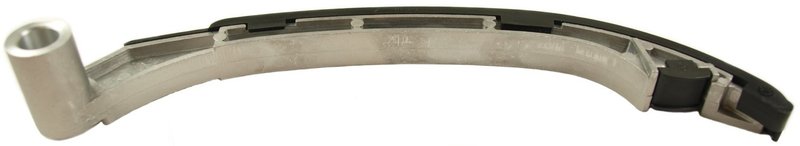

Cloyes 9-5610 Engine Timing Chain Tensioner Guide - Right

Cloyes Timing Chain Tensioner Guide 9-5610

The Cloyes 9-5610 timing chain tensioner guide is a specific-fit engine timing component for select Toyota applications, including Tacoma, Hilux, Hiace, and 4Runner models. Built with a nylon/aluminum construction and a black/gray finish, it provides the chain tracking surface needed to keep the timing system aligned.

Key Features

• Engine timing chain tensioner guide for the right side
• Nylon/aluminum construction for the guide shoe and support structure
• Shoe included with bracket included
• Specific fit application, not universal
• Measures 12 1/8 inches long, 1.75 inches wide, and 3.10 inches high
• One mounting hole with a 0.60 inch inside diameter
• Black/gray finish
• Part number 9-5610

Product Details

Cloyes timing guides are CAD designed and manufactured with advanced materials, then tested for function and durability to meet or exceed OEM performance requirements. This timing chain tensioner guide serves as the track that helps the timing chain stay properly routed between the crankshaft and camshaft. For Toyota Tacoma, Toyota Hilux, Toyota Hiace, and Toyota 4Runner timing service, the 9-5610 is a direct replacement style component for the right-side position.

This part cross-references Dorman - HELP 95610 for the same application.

What It Helps Address

• Timing chain noise from a worn guide surface
• Chain misalignment in the right-side timing assembly
• Excessive wear on the timing chain guide shoe
• Loss of proper chain tracking during engine operation
• Timing service repairs on Toyota Tacoma, Hilux, Hiace, and 4Runner engines

Installation Notes

Replace the chain tensioner, sprockets, and guides together when servicing the timing chain. This helps restore proper chain tension and reduces the chance of repeat timing system wear. Verify the right-side application and compare the mounting dimensions before installation. Use application-specific catalog data to confirm coverage for your exact Toyota engine configuration.

Quality Assurance

Cloyes manufactures this timing chain tensioner guide using CAD-designed components and advanced materials, with testing focused on function and durability. The brand positions its timing guides as OEM-level replacement parts for quiet, maintenance-free operation.
