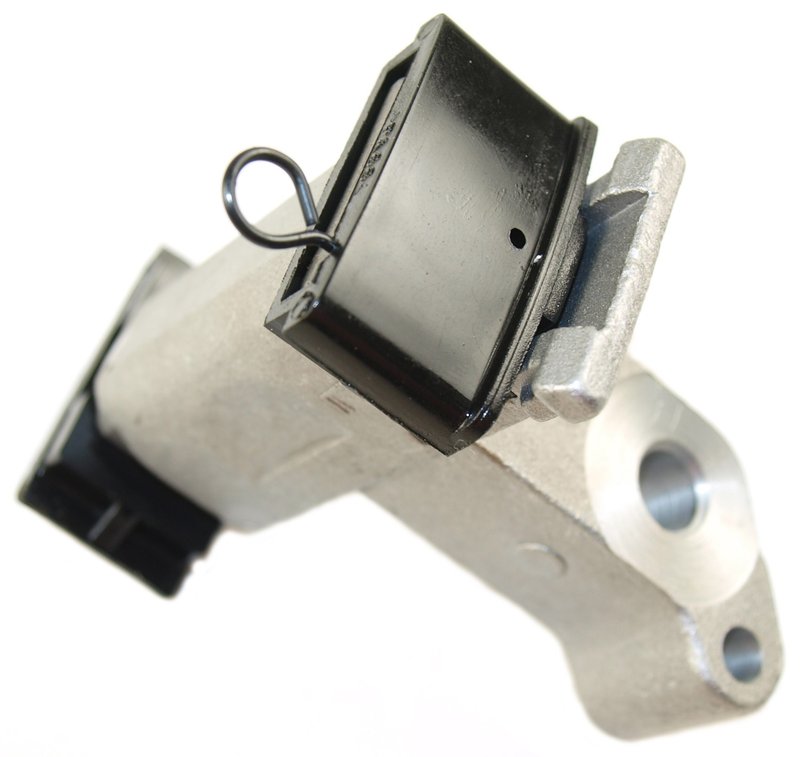

Cloyes 9-5620 Engine Timing Chain Tensioner - Left Upper - view 1
Cloyes 9-5620 Engine Timing Chain Tensioner - Left Upper - view 2
Cloyes 9-5620 Engine Timing Chain Tensioner - Left Upper - view 3
Cloyes 9-5620 Engine Timing Chain Tensioner - Left Upper - view 4
Part #: 9-5620

Cloyes 9-5620 Engine Timing Chain Tensioner - Left Upper

Left Upper
⚙️ 28 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$38.41Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Toyota, Tacoma, Tundra, 4Runner, and FJ Cruiser
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Engine Timing Chain Tensioner options

Overview of Cloyes Engine Timing Chain Tensioner 9-5620

The Cloyes 9-5620 engine timing chain tensioner is designed specifically for Toyota 4Runner, FJ Cruiser, Tacoma, and Tundra models. Constructed from durable aluminum, this hydraulic/spring tensioner ensures precise chain tension for optimal engine performance.

  • Material: Aluminum for lightweight durability
  • Chain Type: Hydraulic/spring tensioner system
  • Activation Type: Activation pin mechanism
  • Shoe and spring included for complete assembly
  • Specific fitment for Toyota 4Runner, FJ Cruiser, Tacoma, and Tundra
  • Dimensions: Width 1.44 inches, Height 2.66 inches
  • Single mounting hole with 0.32 inch inside diameter
  • Non-adjustable, manually set tensioner

Detailed Product Description

The Cloyes 9-5620 engine timing chain tensioner is engineered to maintain proper tension on the timing chain in select Toyota vehicles, including the 4Runner, FJ Cruiser, Tacoma, and Tundra. Made from aluminum, this tensioner offers a balance of strength and lightweight construction. It features a hydraulic/spring activation system with an activation pin, providing consistent chain tension without manual adjustment. The included shoe and spring components ensure a complete and reliable installation. This tensioner is designed with a single mounting hole (0.32 inch inside diameter) and measures 1.44 inches in width and 2.66 inches in height, matching OEM specifications for a precise fit.

Common Applications and Problem Resolution

  • Prevents timing chain slack and reduces chain noise
  • Addresses timing chain rattle and vibration issues
  • Helps avoid premature wear of timing components
  • Ensures accurate valve timing for engine efficiency
  • Replaces worn or faulty tensioners in Toyota 4Runner, FJ Cruiser, Tacoma, and Tundra

Installation Notes and Tips

Installation of the Cloyes 9-5620 tensioner requires proper alignment of the activation pin and secure mounting using the single mounting hole. Since this tensioner is non-adjustable, ensure the timing chain is correctly positioned before finalizing installation. It is recommended to inspect related valve train components during replacement to maintain overall engine timing integrity.

Quality Assurance and Warranty

Cloyes manufactures this engine timing chain tensioner to meet or exceed OEM standards for fit and function. The aluminum construction and hydraulic/spring design contribute to reliable long-term performance. While specific warranty details are not provided here, Cloyes products typically come with manufacturer-backed quality assurance to support durability and customer satisfaction.

BrandCloyes
Part Number9-5620
Activation TypeActivation Pin
AdjustableNo
Bolts IncludedNo
Chain TypeHydraulic/Spring
ColorGray
Height2.66"
Manually AdjustableNo
MaterialAluminum
Mount Hole Inside Diameter0.32"
Mounting Hole Quantity1.0
Shoe IncludedYes
Spring IncludedYes
Universal Or Specific FitSpecific
Width1.44"

This part fits 28 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2015ToyotaTacoma4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2014ToyotaTacoma4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2013ToyotaTacoma4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2012ToyotaTacoma4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2011ToyotaTacoma4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2011ToyotaTundra4.0LV6Left UpperTo 10/20/2010
2010ToyotaTacoma4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2010ToyotaTundra4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2009Toyota4Runner4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2009ToyotaFJ Cruiser4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2009ToyotaTacoma4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2009ToyotaTundra4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2008Toyota4Runner4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2008ToyotaFJ Cruiser4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2008ToyotaTacoma4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2008ToyotaTundra4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2007Toyota4Runner4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2007ToyotaFJ Cruiser4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2007ToyotaTacoma4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2007ToyotaTundra4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2006Toyota4Runner4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2006ToyotaTacoma4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2006ToyotaTundra4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2005Toyota4Runner4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2005ToyotaTacoma4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2005ToyotaTundra4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2004Toyota4Runner4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.
2003Toyota4Runner4.0LV6Left UpperCompatible with Engine Timing Chain Tensioner models for various vehicle makes and models.

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

13560-3101013560-AD01095620

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
