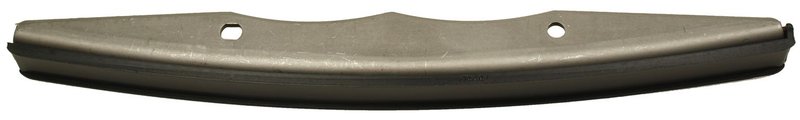

Cloyes 9-5625 Engine Timing Chain Guide - Center Upper

Cloyes Timing Chain Guide for Nissan and Suzuki

The Cloyes 9-5625 engine timing chain guide is built for applications that use a center upper chain guide to keep timing chain movement controlled between the crankshaft and camshaft. It is a direct-fit engine timing chain guide for select Nissan Frontier, Xterra, Pathfinder, NV vans, and Suzuki Equator models.

• Brand: Cloyes
• Part number: 9-5625
• Material: nylon/steel construction
• Chain type: chain guide with shoe included
• Color: black/gray
• Length: 11 1/2 in.
• Width: 0.73 in.
• Height: 1.24 in.
• Bracket included: yes
• Mounting hole quantity: 2

Product Details

Cloyes 9-5625 is engineered as a timing chain guide for the center upper position and is manufactured with CAD-designed components and advanced materials. The nylon/steel design helps provide a stable chain track, while the included shoe and bracket support proper chain routing in the timing system. Cloyes tests each part for function and durability to help maintain consistent timing system performance in Nissan Frontier, Nissan Xterra, Nissan Pathfinder, Nissan NV1500, NV2500, NV3500, and Suzuki Equator applications.

This part cross-references Dorman - HELP 95625 for the same application.

Vehicle Fitment

• Fits 2005-2019 Nissan Frontier, center upper.
• Fits 2012-2019 Nissan NV1500, center upper.
• Fits 2012-2019 Nissan NV2500, center upper.
• Fits 2012-2019 Nissan NV3500, center upper.
• Fits 2005-2015 Nissan Xterra, center upper.
• Fits 2005-2012 Nissan Pathfinder, center upper.
• Fits 2009-2012 Suzuki Equator, center upper.

Common Repair Symptoms

• Timing chain noise from the upper timing cover area
• Visible wear on the chain guide surface
• Chain tracking issues in the timing system
• Service replacement during timing chain repair
• Restoration of proper chain alignment in the center upper position

Installation Notes

Replace the timing chain guide during timing service when the chain shows wear or when the guide surface is damaged. Cloyes recommends replacing the chain tensioner, sprockets, and guides together when servicing the timing chain system. Verify center upper fitment for the exact year, make, and model before installation.

Quality Assurance

Cloyes designs and manufactures timing components using advanced materials and validates parts through functional and durability testing to support reliable engine timing performance.
