Cloyes 9-5626 Engine Timing Chain Guide - Left
OE Quality 60-Day Returns
Cloyes

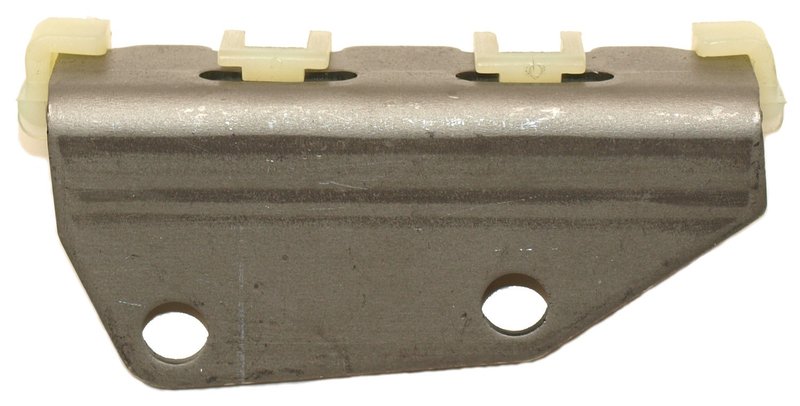

Cloyes 9-5626 Engine Timing Chain Guide - Left

Brand Cloyes 9-5626
Position Left
Material Nylon/steel
Chain Type Chain guide
Shoe Included Yes
Length 3 3/4"
Color Green/gray
Width 1.00"
Height 1.52"
Bracket Included Yes
Bolts Included No
Mounting Hole Quantity 2.0
Mount Hole Inside Diameter 0.33"/0.33"
Fits Nissan and Suzuki · 62 vehicles

OE-level performance. Meets or exceeds OEM requirements for dependable timing chain control.

Nylon/steel construction. Combines advanced materials for quiet, maintenance-free operation.

Chain guide function. Tracks the timing chain to help keep it properly supported and tight.

Cross-references Dorman - HELP 95626 and Genuine 13085-EA210 for the same application. See all 2.

$23.81Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $23.81
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Chain Guide options

Cloyes Timing Chain Guide for Nissan and Suzuki

The Cloyes 9-5626 engine timing chain guide is built for left-side applications on select Nissan and Suzuki vehicles. It uses a nylon and steel construction with an integrated shoe and bracket to help maintain timing chain alignment in the valve train.

  • Nylon/steel timing chain guide with green/gray finish
  • Chain guide design with shoe included
  • Bracket included for proper mounting
  • Two mounting holes with 0.33" inside diameter
  • Dimensions: 3 3/4" long, 1.00" wide, 1.52" high
  • Compatible With 2005-2019 Nissan Frontier, left
  • Compatible With 2012-2019 Nissan NV1500, left
  • Compatible With 2012-2019 Nissan NV2500, left
  • Compatible With 2012-2019 Nissan NV3500, left
  • Compatible With 2005-2015 Nissan Xterra, left
  • Compatible With 2005-2012 Nissan Pathfinder, left
  • Compatible With 2009-2012 Suzuki Equator, left

Detailed Product Overview

Cloyes part number 9-5626 is an engine timing chain guide designed to track the timing chain between the crankshaft and camshaft. Cloyes manufactures this guide using CAD-designed components and advanced materials, with testing focused on function and durability. This timing chain guide is a direct-fit style replacement for left-side applications on the Nissan Frontier, Nissan Xterra, Nissan Pathfinder, Nissan NV1500, NV2500, NV3500, and Suzuki Equator.

This part cross-references Dorman - HELP 95626 and Genuine 13085-EA210 for the same application.

Common Repair Symptoms

  • Timing chain noise from the front of the engine
  • Worn or damaged chain guide surface
  • Chain alignment issues in the valve train
  • Rattling caused by guide wear or failure
  • Service replacement during timing chain repair

Installation Notes

Replace the chain tensioner, sprockets, and guides together when servicing the timing chain. Verify left-side placement and confirm application details against the vehicle’s engine configuration before installation. Cloyes part number 9-5626 is intended for use in timing system service where precise chain tracking is required.

Quality Assurance

Cloyes designs and manufactures timing components with application-specific engineering and durability testing to meet or exceed OEM performance requirements. The 9-5626 timing chain guide is built for quiet, maintenance-free operation in the specified Nissan and Suzuki applications.

Related reading

This part fits 62 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypePositionNotes
2019NissanFrontier4.0LV6GASLeft—
2019NissanNV15004.0LV6—Left—
2019NissanNV25004.0LV6—Left—
2019NissanNV35004.0LV6—Left—
2018NissanFrontier4.0LV6GASLeft—
2018NissanNV15004.0LV6—Left—
2018NissanNV25004.0LV6—Left—
2018NissanNV35004.0LV6—Left—
2017NissanFrontier4.0LV6—Left—
2017NissanNV15004.0LV6—Left—
2017NissanNV25004.0LV6—Left—
2017NissanNV35004.0LV6—Left—
2016NissanFrontier4.0LV6—Left—
2016NissanNV15004.0LV6—Left—
2016NissanNV25004.0LV6—Left—
2016NissanNV35004.0LV6—Left—
2015NissanFrontier4.0LV6—Left—
2015NissanNV15004.0LV6—Left—
2015NissanNV25004.0LV6—Left—
2015NissanNV35004.0LV6—Left—
2015NissanXterra4.0LV6—Left—
2014NissanFrontier4.0LV6—Left—
2014NissanNV15004.0LV6—Left—
2014NissanNV25004.0LV6—Left—
2014NissanNV35004.0LV6—Left—
2014NissanXterra4.0LV6—Left—
2013NissanFrontier4.0LV6—Left—
2013NissanNV15004.0LV6—Left—
2013NissanNV25004.0LV6—Left—
2013NissanNV35004.0LV6—Left—
2013NissanXterra4.0LV6—Left—
2012NissanFrontier4.0LV6—Left—
2012NissanNV15004.0LV6—Left—
2012NissanNV25004.0LV6—Left—
2012NissanNV35004.0LV6—Left—
2012NissanPathfinder4.0LV6—Left—
2012NissanXterra4.0LV6—Left—
2012SuzukiEquator4.0LV6—Left—
2011NissanFrontier4.0LV6—Left—
2011NissanPathfinder4.0LV6—Left—
2011NissanXterra4.0LV6—Left—
2011SuzukiEquator4.0LV6—Left—
2010NissanFrontier4.0LV6—Left—
2010NissanPathfinder4.0LV6—Left—
2010NissanXterra4.0LV6—Left—
2010SuzukiEquator4.0LV6—Left—
2009NissanFrontier4.0LV6—Left—
2009NissanPathfinder4.0LV6—Left—
2009NissanXterra4.0LV6—Left—
2009SuzukiEquator4.0LV6—Left—
2008NissanFrontier4.0LV6—Left—
2008NissanPathfinder4.0LV6—Left—
2008NissanXterra4.0LV6—Left—
2007NissanFrontier4.0LV6—Left—
2007NissanPathfinder4.0LV6—Left—
2007NissanXterra4.0LV6—Left—
2006NissanFrontier4.0LV6—Left—
2006NissanPathfinder4.0LV6—Left—
2006NissanXterra4.0LV6—Left—
2005NissanFrontier4.0LV6—Left—
2005NissanPathfinder4.0LV6—Left—
2005NissanXterra4.0LV6—Left—
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - HELP — 95626Genuine — 13085-EA210
