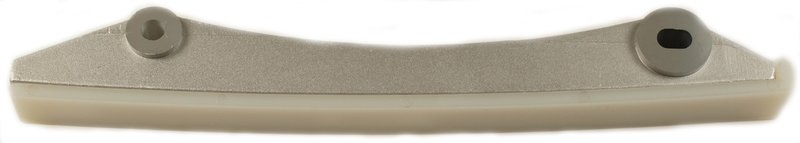

Cloyes 9-5636 Engine Timing Chain Guide - Left Lower

Overview of Cloyes Engine Timing Chain Guide 9-5636

The Cloyes 9-5636 engine timing chain guide is designed specifically for select Chrysler and Dodge vehicles, including the 300, Avenger, Charger, Magnum, and Sebring models. Constructed from durable aluminum and nylon materials, this timing chain guide ensures reliable performance and precise chain alignment for inverted tooth chain systems.

• Material: Aluminum and nylon for strength and wear resistance
• Compatible with inverted tooth chain types
• Color: Gray
• Dimensions: 11.00" overall length, 1.00" width, 1.50" height
• Mounting: Includes 2 mounting holes with inside diameters of 0.35" and 0.50" x 0.35"
• Mounting bracket included for secure installation
• Specific fitment for Chrysler and Dodge models

Detailed Product Description

The Cloyes 9-5636 engine timing chain guide is engineered to maintain proper tension and alignment of the inverted tooth timing chain in compatible Chrysler and Dodge engines. Its aluminum and nylon composite construction offers a balance of rigidity and low friction, reducing wear on the chain and guide itself. The gray finish complements the engine components while providing corrosion resistance. With precise dimensions—11 inches in length, 1 inch in width, and 1.5 inches in height—this guide fits securely in the designated mounting points. The included mounting bracket and two mounting holes ensure a stable and accurate installation, critical for maintaining engine timing integrity.

Applications and Problem Solving

• Prevents timing chain slack and misalignment in Chrysler 300 and Dodge Charger engines
• Reduces noise caused by chain vibration in Dodge Avenger and Magnum models
• Minimizes premature wear of timing components in Chrysler Sebring vehicles
• Helps maintain engine timing accuracy to avoid performance issues
• Supports longevity of the valve train system by stabilizing the timing chain

Installation Notes and Tips

Installation of the Cloyes 9-5636 timing chain guide requires removal of the timing cover and careful alignment with the engine’s mounting points. Ensure the mounting holes align precisely with the engine block using the included bracket. Verify the chain type is inverted tooth before installation. It is recommended to inspect the timing chain and related components for wear during replacement. Proper torque specifications should be followed to avoid damage to the guide or mounting hardware.

Quality Assurance and Warranty

Cloyes manufactures the 9-5636 timing chain guide to meet OEM standards for fit and function. The combination of aluminum and nylon materials is selected for durability and resistance to engine environment stresses. This part is backed by Cloyes’ quality control processes to ensure consistent performance. Warranty coverage details should be confirmed with the original parts provider or vehicle manufacturer.
