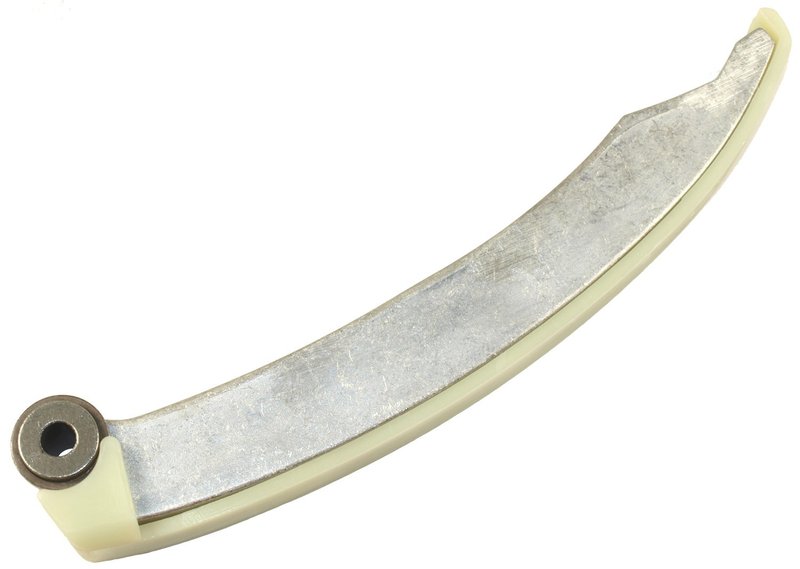

Cloyes 9-5640 Engine Timing Chain Tensioner Guide

Overview of Cloyes Timing Chain Tensioner Guide 9-5640

The Cloyes Timing Chain Tensioner Guide 9-5640 is engineered for precise valve train operation in select Chrysler, Dodge, Jeep, and Ram vehicles. Designed with durable nylon and aluminum materials, this specific-fit guide ensures reliable timing chain tension and smooth engine performance.

• Constructed from nylon and aluminum for strength and durability
• Includes shoe and mounting bracket for complete installation
• Gray color with dimensions: 1.00" thickness, 8.75" width, 1.90" height
• Specific fit for Chrysler, Dodge, Jeep, and Ram models including Ram 1500, Ram 2500, Grand Cherokee, Durango, Dakota, Aspen, and Commander
• Single mounting hole with 0.33" inside diameter for secure attachment

About the Cloyes Timing Chain Tensioner Guide Product Line

The Cloyes Timing Chain Tensioner Guide product line focuses on providing precise valve train components that maintain optimal timing chain tension. This guide, part number 9-5640, is designed to work seamlessly with the tensioner system, helping to reduce chain slack and wear. The inclusion of a shoe and bracket supports proper alignment and durability within the engine’s timing system.

Detailed Product Description

This engine timing chain tensioner guide is manufactured using a combination of nylon and aluminum, offering a balance of lightweight construction and structural integrity. The gray guide measures 1.00 inch thick, 8.75 inches wide, and 1.90 inches high, dimensions tailored for specific engine configurations. It includes a shoe to reduce friction and a mounting bracket for secure installation. The single mounting hole with a 0.33-inch inside diameter ensures compatibility with factory mounting points. This part is designed specifically for Chrysler, Dodge, Jeep, and Ram vehicles, including models such as the Ram 1500, Ram 2500, Grand Cherokee, Durango, Dakota, Aspen, and Commander.

Common Applications and Issues Addressed

• Maintains proper timing chain tension to prevent engine timing issues
• Reduces noise caused by loose or worn timing chains
• Prevents premature wear of timing chain components
• Supports smooth engine operation and performance consistency
• Helps avoid costly engine damage related to timing chain failure

Installation Notes and Tips

Installation of the Cloyes Timing Chain Tensioner Guide 9-5640 requires removal of the timing cover and careful alignment with the timing chain tensioner system. The included bracket and shoe simplify mounting, but bolts are not included and must be sourced separately. Ensure the mounting hole aligns correctly with the engine block and torque specifications are followed according to manufacturer guidelines. It is recommended to inspect the timing chain and related components during installation for wear or damage.

Quality Assurance and Warranty

Cloyes manufactures this timing chain tensioner guide to meet OEM standards for fit and function. The use of nylon and aluminum materials provides durability under typical engine operating conditions. While specific warranty details are not provided here, Cloyes products generally come with a limited warranty against defects in materials and workmanship. Verify warranty terms with the supplier or manufacturer documentation.
