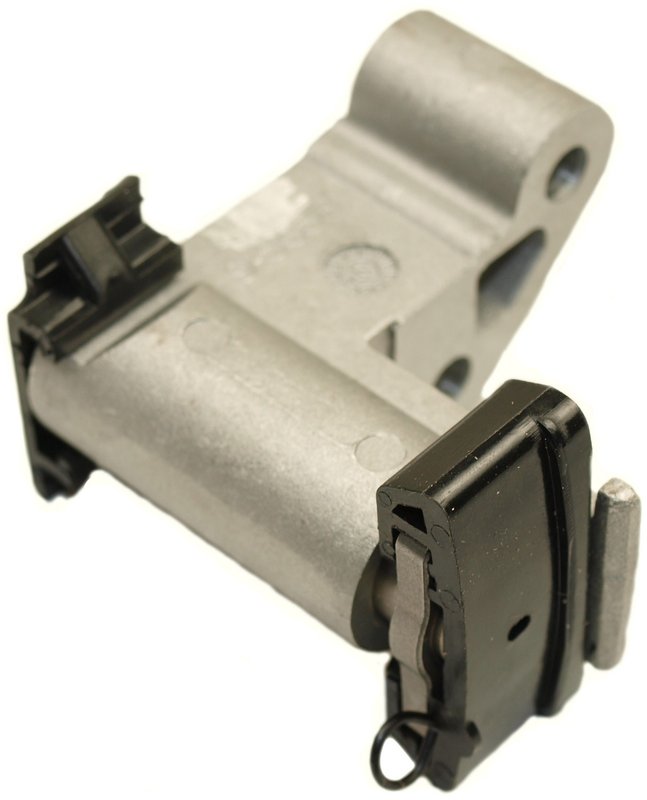

Cloyes 9-5658 Engine Timing Chain Tensioner - Right Upper

Overview of Cloyes Timing Chain Tensioner 9-5658

The Cloyes Timing Chain Tensioner 9-5658 is engineered to maintain optimal tension in the timing chain system for select Ford, Lincoln, Mazda, and Mercury vehicles. Designed with durable nylon and aluminum materials, this hydraulic/spring tensioner ensures consistent chain performance without manual adjustment.

• Material: Nylon and aluminum construction for durability and lightweight performance
• Tensioner Type: Hydraulic with integrated spring for automatic tension control
• Shoe Included: Yes, to reduce chain wear and noise
• Activation Type: Activation pin for precise engagement
• Dimensions: Length 2.50", Width 1.75", Height 2.60"
• Mounting: Two mounting holes with inside diameters of 0.255" and 0.251"
• Non-adjustable design for reliable, maintenance-free operation
• Spring included to maintain consistent tension throughout engine operation

About the Cloyes Timing Chain Tensioner Product Line

The Cloyes Timing Chain Tensioner product line focuses on delivering reliable valve train components that meet OEM specifications. This line includes hydraulic and spring tensioners designed to provide consistent chain tension, reduce noise, and extend timing chain life. The 9-5658 model is part of this line, offering a non-adjustable, activation pin type tensioner suitable for various Ford, Lincoln, Mazda, and Mercury applications.

Detailed Product Description

The Cloyes 9-5658 timing chain tensioner is constructed from a combination of nylon and aluminum, balancing strength and weight to optimize engine performance. Its hydraulic and spring tensioner type automatically adjusts tension on the timing chain, eliminating the need for manual adjustments. The included shoe helps minimize chain vibration and wear, contributing to smoother engine operation. This tensioner is designed with two mounting holes for secure installation and features an activation pin for precise engagement with the timing chain system. It does not include a pulley, bolts, or gasket, so these components must be sourced separately if required.

Compatible Vehicles and Common Applications

• Ford Edge, Explorer, Flex, Fusion, Taurus, Taurus X
• Lincoln MKS, MKT, MKX, MKZ, Sable
• Mazda CX-9
• Mercury Sable

This timing chain tensioner is specifically compatible with these makes and models, ensuring proper fit and function when replacing worn or faulty tensioners.

Common Issues Addressed by This Timing Chain Tensioner

• Eliminates timing chain slack that can cause engine misfires or poor performance
• Reduces chain noise and rattling during engine operation
• Prevents premature wear of timing chain and sprockets
• Maintains proper valve timing for efficient engine function
• Helps avoid costly engine damage due to timing chain failure

Installation Notes and Tips

Installation of the Cloyes 9-5658 timing chain tensioner requires removal of the timing cover and careful alignment with the timing chain system. Ensure the activation pin is properly engaged during installation to allow correct tensioner operation. Since bolts and gaskets are not included, use OEM or compatible hardware and seals. It is recommended to inspect the timing chain and related components for wear during replacement to ensure overall system reliability.

Quality Assurance and Warranty

Cloyes timing chain tensioners are manufactured to meet or exceed OEM standards, providing reliable performance and durability. While specific warranty details for part number 9-5658 are not provided here, Cloyes products typically come with a limited warranty against defects in materials and workmanship. Refer to the product packaging or manufacturer documentation for exact warranty terms.
