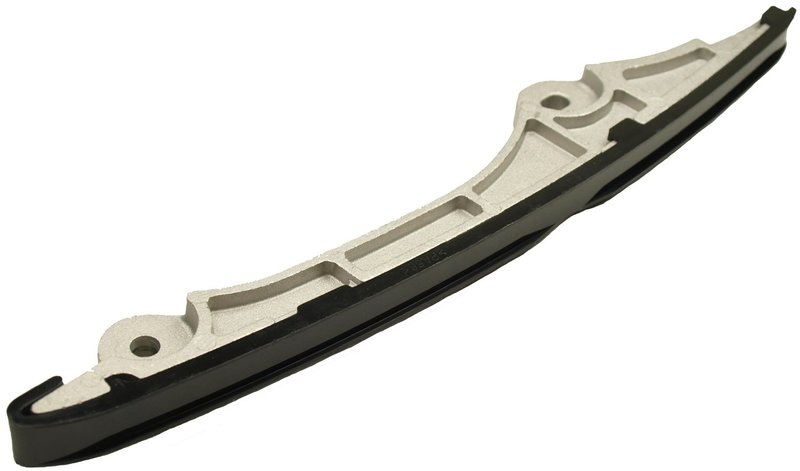

Cloyes 9-5660 Engine Timing Chain Guide - Left Lower

Reliable Timing Chain Guide for Ford, Lincoln, Mazda, and Mercury Vehicles

The Cloyes Timing Chain Guide 9-5660 is engineered to provide precise timing chain alignment and durability for select Ford, Lincoln, Mazda, and Mercury models. Designed with a nylon and aluminum construction, this guide ensures consistent performance and longevity in your engine's valve train system.

• Constructed from durable nylon and aluminum materials
• Includes shoe and mounting bracket for secure installation
• Measures 11 3/4 inches in length, 0.912 inches in width, and 1.80 inches in height
• Features two mounting holes with inside diameters of 0.255" and 0.258"
• Compatible with Ford Edge, Fusion, Flex, Taurus, Taurus X; Lincoln MKS, MKT, MKX, MKZ; Mazda CX-9; and Mercury Sable models

About the Cloyes Timing Chain Guide Product Line

The Cloyes Timing Chain Guide product line focuses on delivering reliable valve train components that maintain proper timing chain tension and alignment. This guide, part number 9-5660, is designed to meet OEM specifications, combining nylon and aluminum materials to balance wear resistance and structural support. The inclusion of the shoe and bracket ensures a complete solution for timing chain guidance in compatible vehicles.

Detailed Product Description

The Cloyes 9-5660 Timing Chain Guide is a critical component in the engine's valve train system, helping to maintain proper timing chain tension and alignment. Its nylon and aluminum construction offers a balance of lightweight durability and resistance to wear. The guide measures 11 3/4 inches in length, 0.912 inches in width, and 1.80 inches in height, fitting precisely within the engine assembly. It includes a shoe and mounting bracket for secure attachment, with two mounting holes sized at 0.255" and 0.258" inside diameter to ensure compatibility with factory hardware. This part is designed specifically for use in Ford, Lincoln, Mazda, and Mercury vehicles, including models such as the Ford Edge, Fusion, Flex, Taurus, Taurus X; Lincoln MKS, MKT, MKX, MKZ; Mazda CX-9; and Mercury Sable.

Common Applications and Issues Addressed

• Prevents timing chain slack and misalignment
• Reduces engine noise caused by worn or damaged guides
• Helps avoid premature timing chain wear or failure
• Supports proper valve timing for engine performance
• Addresses issues related to timing chain guide wear or breakage

Installation Notes and Tips

Installation of the Cloyes Timing Chain Guide 9-5660 requires careful alignment with the engine’s timing chain system. Ensure the mounting bracket and shoe are properly positioned and secured using the two mounting holes. Note that bolts are not included with this part and must be sourced separately. It is recommended to inspect the timing chain and related components during installation to confirm overall system condition.

Quality Assurance and Warranty

Cloyes manufactures this Timing Chain Guide to meet or exceed OEM standards, ensuring reliable fit and function. The nylon and aluminum materials are selected for durability and resistance to engine wear conditions. While specific warranty details are not provided here, Cloyes products typically come with manufacturer-backed quality assurance to support long-term use in compatible Ford, Lincoln, Mazda, and Mercury vehicles.
