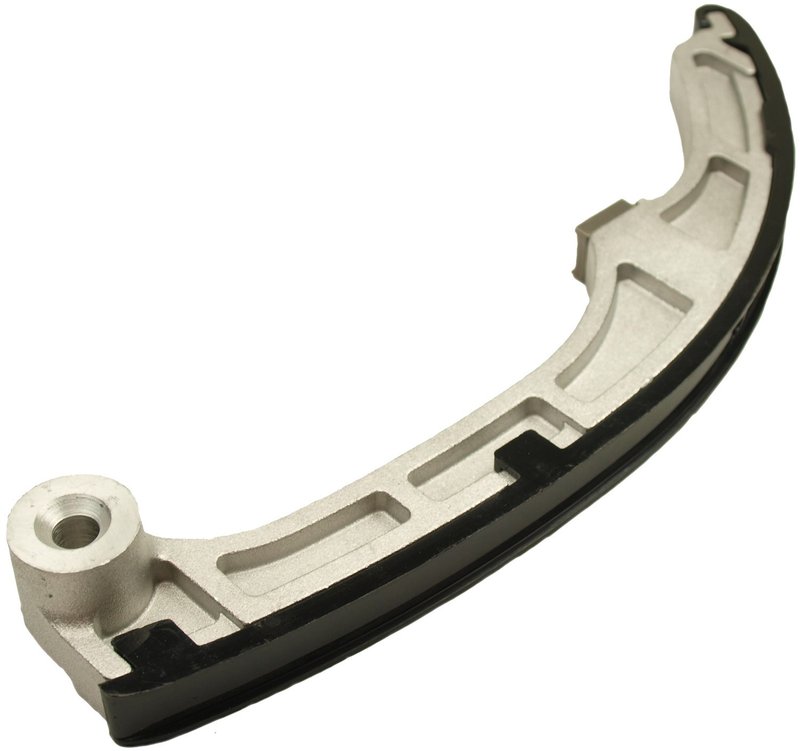

Cloyes 9-5661 Engine Timing Chain Tensioner Guide - Right

Cloyes Timing Chain Tensioner Guide 9-5661

Cloyes 9-5661 is an engine timing chain tensioner guide for select Ford, Lincoln, and Mazda applications. Built with a nylon/aluminum construction and a shoe and bracket included, it is designed for precise chain tracking in the valve train.

This timing chain guide is part of the Cloyes Timing Chain Tensioner Guide line, a product family focused on OE-style replacement components for timing systems. Cloyes uses CAD-based design and advanced materials, with testing for function and durability to help maintain quiet chain operation.

• Nylon/aluminum construction for timing chain guidance
• Shoe included for direct guide service
• Bracket included for proper mounting support
• Measures 9 3/4 in. long, 1.02 in. wide, and 2.75 in. high
• One mounting hole with 0.319 in. inside diameter
• Fits right-side applications and N/A-position listings shown below

Vehicle Fitment

• Fits 2012-2013 Mazda 6, N/A.
• Fits 2011 Ford Flex, right; fits engines with single tooth water pump sprocket.
• Fits 2011 Ford Taurus, right; fits engines with single tooth water pump sprocket.
• Fits 2011 Lincoln MKS, right; fits engines with single tooth water pump sprocket.
• Fits 2011 Lincoln MKT, right; fits engines with single tooth water pump sprocket.
• Fits 2011 Lincoln MKZ, N/A.
• Fits 2011 Mazda 6, right; fits engines manufactured up to 12/14/2010.
• Fits 2011 Mazda CX-9, right; fits engines manufactured up to 12/14/2010.
• Fits 2007-2010 Ford Edge, right.
• Fits 2009-2010 Ford Flex, right.
• Fits 2010 Ford Fusion, right.
• Fits 2008-2010 Ford Taurus, right.
• Fits 2009-2010 Lincoln MKS, right.
• Fits 2010 Lincoln MKT, right.
• Fits 2007-2010 Lincoln MKX, right.
• Fits 2007-2010 Lincoln MKZ, right.
• Fits 2009-2010 Mazda 6, right.
• Fits 2007-2010 Mazda CX-9, right.
• Fits 2008-2009 Ford Taurus X, right.
• Fits 2008-2009 Mercury Sable, right.

What This Part Helps Address

• Timing chain noise caused by a worn guide surface
• Chain tracking issues in the engine valve train
• Excessive movement from a deteriorated guide shoe
• Service needs during timing chain replacement on Ford, Lincoln, and Mazda engines
• Right-side guide wear on listed applications

Installation Notes

Verify engine configuration and build date before ordering, especially for 2011 Mazda 6 and 2011 Mazda CX-9 applications. Cloyes recommends replacing the chain tensioner(s), sprocket(s), and guide(s) when servicing the timing chain, since these components work together to keep the chain properly supported and tensioned. This part cross-references Ford/Mazda OE applications such as 7T4Z6K255AA and 95661 for the same application.

Quality Assurance

Cloyes designs and manufactures timing components using CAD-based engineering and advanced materials, then tests each part for function and durability. The goal is consistent timing system performance in service on applications such as the Ford Edge, Mazda 6, and Lincoln MKZ.
