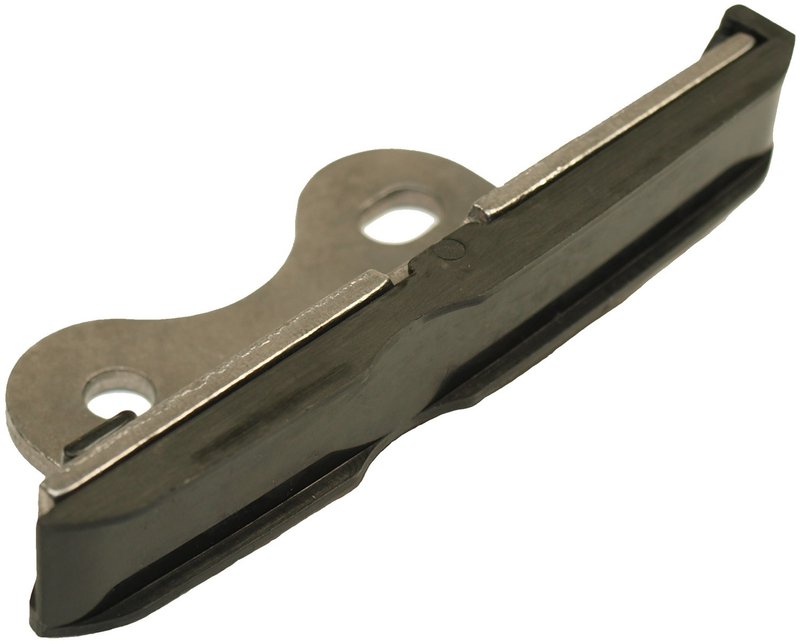

Cloyes 9-5662 Engine Timing Chain Guide - Left Upper

Cloyes Timing Chain Guide 9-5662

Cloyes 9-5662 is an engine timing chain guide for the left upper position, built with a nylon/metal construction and a bonded shoe for controlled chain tracking. It is designed for Ford, Lincoln, and Mazda applications that require precise timing chain support, including 2007-2011 Ford Edge, 2009-2010 Ford Flex, and 2007-2010 Mazda CX-9 coverage.

Key Features

• Brand Line: Cloyes Timing Chain Guide for engine timing service
• Nylon/metal construction for guided chain movement
• Shoe included for direct chain contact surface
• Bracket included for mounting support
• Length: 4.0 in; Width: 0.93 in; Height: 1.50 in
• Two mounting holes with 0.262 in / 0.254 in inside diameter
• Interchange reference: 7T4Z6K297AA
• Part number: 9-5662

Product Details

This Cloyes timing chain guide is CAD designed and manufactured with advanced materials, then tested for function and durability to meet OEM performance requirements. It helps maintain proper timing chain path between the crankshaft and camshaft, reducing chain movement and supporting quiet operation in the valvetrain. Cloyes recommends replacing the chain tensioner, sprockets, and guides together when servicing the timing set. This part cross-references 7T4Z6K297AA for the same application.

Vehicle Fitment

• Fits 2011 Ford Flex, left upper; fits engines with single tooth water pump sprocket.
• Fits 2011 Ford Taurus, left upper; fits engines with single tooth water pump sprocket.
• Fits 2011 Lincoln MKS, left upper; fits engines with single tooth water pump sprocket.
• Fits 2011 Lincoln MKT, left upper; fits engines with single tooth water pump sprocket.
• Fits 2011 Lincoln MKZ, left upper.
• Fits 2011 Mazda 6, left upper; fits engines manufactured up to 12/14/2010.
• Fits 2011 Mazda CX-9, left upper; fits engines manufactured up to 12/14/2010.
• Fits 2007-2010 Ford Edge, left upper.
• Fits 2009-2010 Ford Flex, left upper.
• Fits 2010 Ford Fusion, left upper.
• Fits 2008-2010 Ford Taurus, left upper.
• Fits 2009-2010 Lincoln MKS, left upper.
• Fits 2010 Lincoln MKT, left upper.
• Fits 2007-2010 Lincoln MKX, left upper.
• Fits 2007-2010 Lincoln MKZ, left upper.
• Fits 2009-2010 Mazda 6, left upper.
• Fits 2007-2010 Mazda CX-9, left upper.
• Fits 2008-2009 Ford Taurus X, left upper.
• Fits 2008-2009 Mercury Sable, left upper.

Installation Notes

Verify engine configuration and timing set layout before installation, especially on 2011 applications with a single tooth water pump sprocket and 2011 Mazda 6 or CX-9 engines built up to 12/14/2010. Inspect the chain, tensioner, and sprockets for wear before reassembly, and confirm the guide mounts to the correct left upper location. Bolts are not included.

Quality Assurance

Cloyes manufactures this timing chain guide using CAD-based design, advanced materials, and durability testing to support consistent timing system performance. The part is built to meet or exceed OEM performance requirements for the listed Ford, Lincoln, and Mazda applications.
