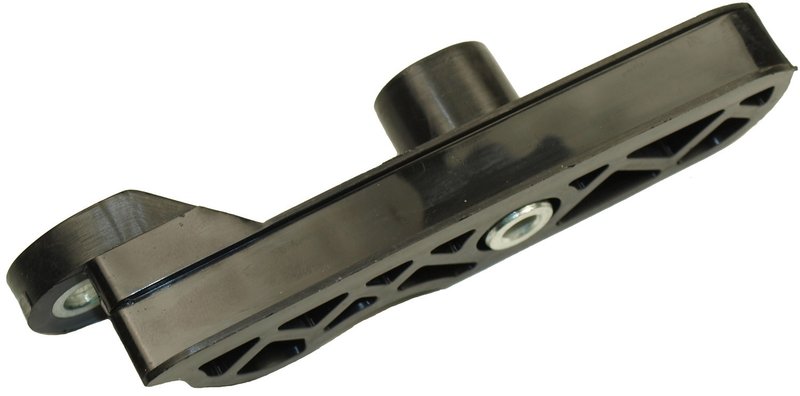

Cloyes 9-5663 Engine Timing Chain Guide - Right Upper

Cloyes Timing Chain Guide 9-5663

Cloyes 9-5663 is a nylon timing chain guide with an integrated shoe for the right upper position. It is built to meet or exceed OEM performance requirements and is designed for quiet, maintenance-free operation in timing systems that connect the crankshaft and camshaft.

This timing chain guide is a direct-fit service part for select Ford, Lincoln, and Mazda applications, including 2007-2012 Ford Taurus, 2007-2010 Ford Edge, and 2007-2010 Mazda CX-9 right upper positions. The Cloyes timing chain guide line uses CAD-designed construction and advanced materials for consistent fit and durability.

Key Features

• Nylon guide construction for timing chain control
• Shoe included for the guide surface
• Right upper position application
• Length: 4 7/8 in.
• Width: 1.16 in.
• Height: 1.01 in.
• Two mounting holes with 0.248 in. inside diameter
• Bracket and bolts not included

Product Details

The Cloyes Timing Chain Guide brand line is engineered for timing system service where accurate chain tracking matters. Part number 9-5663 is manufactured with advanced materials and tested for function and durability to help maintain proper chain alignment in the engine valvetrain. When replacing a timing chain, Cloyes recommends replacing the chain tensioner, sprockets, and guides at the same time to restore proper chain control across the system.

This part cross-references 7T4Z6M256A and 9T4Z6M256A for the same application.

Common Problems This Part Can Address

• Timing chain noise from a worn guide surface
• Chain misalignment in the right upper timing path
• Excessive wear on the timing chain guide shoe
• Loss of chain control after timing service
• Service replacement for damaged or deteriorated guide material

Installation Notes

Compatible With 2007-2010 Ford Edge, Right Upper; 2009-2010 Ford Flex, Right Upper; 2010 Ford Fusion, Right Upper; 2008-2009 Ford Taurus X, Right Upper; 2008-2009 Mercury Sable, Right Upper; 2007-2010 Lincoln MKX, Right Upper; 2007-2010 Lincoln MKZ, Right Upper; 2009-2010 Lincoln MKS, Right Upper; 2010 Lincoln MKT, Right Upper; 2009-2010 Mazda 6, Right Upper; 2007-2010 Mazda CX-9, Right Upper; and 2008-2012 Ford Taurus, Right Upper, with additional 2011-2012 and 2011 model-specific applications listed in the fitment data. Verify engine configuration before installation, including 2011 Ford Flex, 2011 Ford Taurus, 2011 Lincoln MKS, and 2011 Lincoln MKT applications that require engines with a single tooth water pump sprocket, plus 2011 Mazda 6 and 2011 Mazda CX-9 applications manufactured up to 12/14/2010.

Use the existing timing marks and service procedures for the engine family being repaired. Inspect the chain tensioner and sprockets during timing service, since guide wear often occurs alongside related timing components.

Quality Assurance

Cloyes designs and manufactures timing components using CAD-based engineering and advanced materials, then tests parts for function and durability before release. Part number 9-5663 is built to meet or exceed OEM performance requirements for timing chain service.
