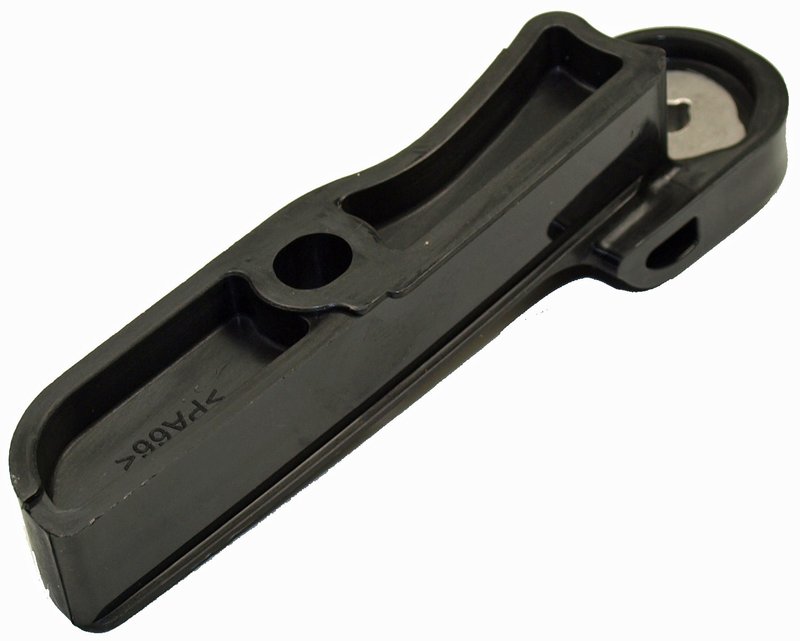

Cloyes 9-5693 Engine Timing Chain Guide - Right Upper

Overview of Cloyes Timing Chain Guide 9-5693

The Cloyes Timing Chain Guide 9-5693 is engineered to provide reliable support and guidance for the timing chain in select Ford, Lincoln, and Mazda vehicles. Designed with durable nylon material, this guide ensures consistent performance and longevity in the engine's valve train system.

• Constructed from high-quality nylon for durability and wear resistance
• Includes mounting bracket and shoe for secure installation
• Dimensions: Length 5.051 inches (128.3 mm), Width 1.272 inches (32.3 mm), Height 1.206 inches (30.6 mm)
• Two mounting holes with diameters of 0.242 inches (6.14 mm) and 0.413 inches (10.49 mm)
• Compatible with Ford, Lincoln, and Mazda models including Explorer, Fusion, Taurus, CX-9, Flex, MKS, MKT, and MKZ

About the Cloyes Timing Chain Guide Product Line

The Cloyes Timing Chain Guide product line focuses on precision-engineered components that maintain proper timing chain tension and alignment. This guide is part of that line, designed to work seamlessly within the valve train components to reduce chain slack and prevent premature wear, contributing to the overall engine timing accuracy.

Detailed Product Description

This engine timing chain guide is made from nylon, a material chosen for its strength and resistance to heat and friction. Measuring approximately 5.05 inches in length and 1.27 inches in width, it fits precisely within the valve train assembly. The included mounting bracket and shoe facilitate a secure fit, while the two mounting holes ensure proper attachment to the engine block. The guide’s dimensions and mounting specifications are tailored to fit specific Ford, Lincoln, and Mazda models, ensuring compatibility and reliable operation.

Common Applications and Issues Addressed

• Prevents timing chain slack and reduces noise
• Helps avoid premature timing chain wear or failure
• Maintains proper valve timing for engine performance
• Reduces risk of engine misfires related to timing chain issues
• Supports longevity of the valve train components

Installation Notes and Tips

Installation of the Cloyes Timing Chain Guide 9-5693 requires careful alignment of the mounting holes and secure attachment of the included bracket and shoe. It is recommended to inspect the timing chain and related components for wear during installation. Proper torque specifications should be followed to avoid damage to the guide or mounting points. This part is compatible with specific Ford, Lincoln, and Mazda models, so verifying vehicle fitment before installation is essential.

Quality Assurance and Warranty

Cloyes manufactures its Timing Chain Guide components to meet OEM standards, ensuring reliable fit and function. The nylon material and precise engineering contribute to consistent performance under normal operating conditions. While specific warranty details are not provided here, Cloyes products typically come with manufacturer-backed quality assurance to support durability and customer confidence.
