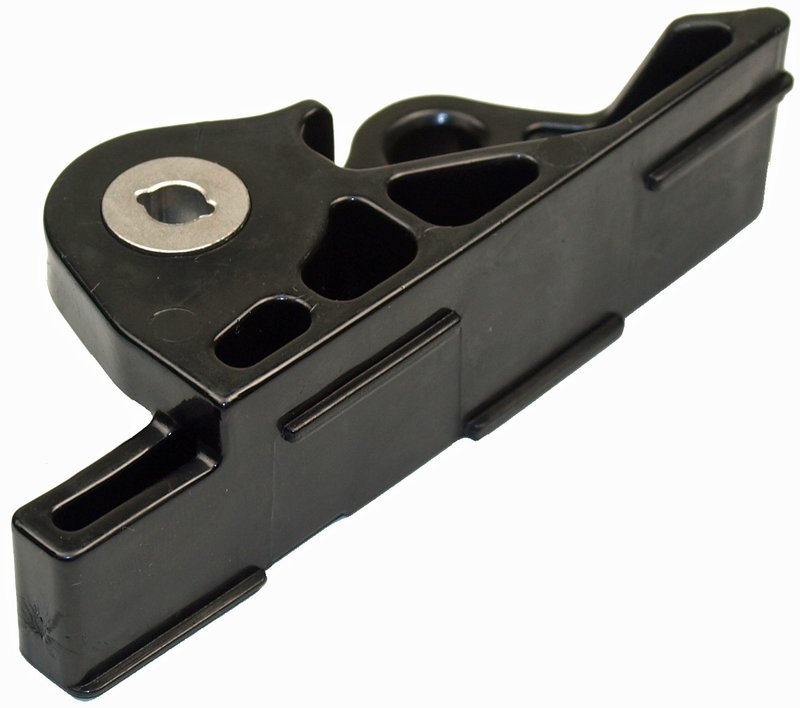

Cloyes 9-5694 Engine Timing Chain Guide - Left Upper

Reliable Timing Chain Guide for Ford, Lincoln, and Mazda Vehicles

The Cloyes Timing Chain Guide 9-5694 is engineered to provide precise timing chain support for select Ford, Lincoln, and Mazda models. Designed with durable nylon material and including a mounting bracket and shoe, this guide ensures consistent valve train performance and longevity.

• Constructed from high-quality nylon for durability and wear resistance
• Includes mounting bracket and shoe for secure installation
• Dimensions: Length 106.07 mm (4.176 in), Width 27.51 mm (1.083 in), Height 39.62 mm (1.56 in)
• Two mounting holes with diameters of 6.14 mm (0.242 in) and 10.26 mm (0.404 in)
• Compatible with Ford Explorer, Flex, Fusion, Taurus; Lincoln MKS, MKT, MKZ; Mazda CX-9

About the Cloyes Timing Chain Guide Product Line

The Cloyes Timing Chain Guide line focuses on providing reliable and precise components for engine valve train systems. This product line is designed to maintain proper timing chain tension and alignment, reducing wear and potential engine damage. The 9-5694 guide is part of this line, offering a nylon construction that balances strength and noise reduction for improved engine operation.

Product Details and Specifications

This engine timing chain guide features a nylon body that resists wear and heat, contributing to extended service life. The included mounting bracket and shoe facilitate a secure fitment, ensuring the guide remains properly positioned during engine operation. With two mounting holes sized at 0.242 and 0.404 inches, installation aligns with factory specifications. The guide measures 106.07 mm in length, 27.51 mm in width, and 39.62 mm in height, matching OEM dimensions for a precise fit.

Common Applications and Problem Resolution

• Prevents timing chain slack and misalignment
• Reduces engine noise caused by worn or damaged guides
• Helps avoid premature timing chain wear or failure
• Supports proper valve timing for optimal engine performance
• Addresses issues related to timing chain guide wear in Ford, Lincoln, and Mazda models

Installation Notes and Tips

Ensure the engine is cool before beginning installation. Remove the old timing chain guide carefully to avoid damaging the timing chain or surrounding components. Verify that the mounting holes align correctly with the engine block. Use the included mounting bracket and shoe to secure the guide firmly. Follow vehicle-specific service manual instructions for torque specifications and installation sequence.

Quality Assurance and Warranty

The Cloyes Timing Chain Guide 9-5694 is manufactured to meet or exceed OEM standards for fit and function. Constructed from durable nylon material, it offers reliable performance under normal operating conditions. While specific warranty details are not provided, Cloyes products typically come with a limited warranty against defects in material and workmanship.
