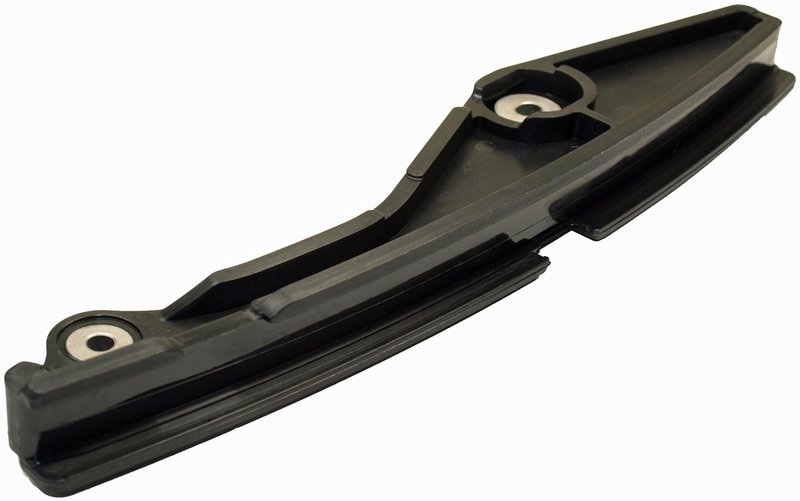

Cloyes 9-5695 Engine Timing Chain Guide - Left Lower

Reliable Timing Chain Guide for Ford, Lincoln, and Mazda Vehicles

The Cloyes Timing Chain Guide 9-5695 is engineered to maintain precise timing chain alignment in select Ford, Lincoln, and Mazda models. Designed with durable nylon material and including a mounting bracket and shoe, this guide ensures consistent engine valve train performance.

• Constructed from high-quality nylon for durability and wear resistance
• Includes mounting bracket and shoe for secure installation
• Dimensions: Length 11.25 inches (285.75 mm), Width 1.16 inches (29.46 mm), Height 2.266 inches (57.56 mm)
• Two mounting holes with diameters of 0.242 and 0.307 inches (6.14 mm and 7.79 mm)
• Compatible with Ford Explorer, Flex, Fusion, Taurus; Lincoln MKS, MKT, MKZ; Mazda CX-9

About the Cloyes Timing Chain Guide Product Line

The Cloyes Timing Chain Guide line focuses on precision-engineered components designed to support timing chain systems in various engine configurations. This product line emphasizes material quality and fitment accuracy, providing reliable guidance and tensioning to maintain optimal valve train timing. The 9-5695 guide is part of this line, offering a nylon construction that balances strength and low friction for extended service life.

Product Details and Specifications

This engine timing chain guide features a robust nylon construction that resists wear and heat, essential for maintaining timing chain alignment under demanding engine conditions. The guide measures 11.25 inches in length and 1.16 inches in width, with a height of approximately 2.266 inches. It includes two mounting holes sized at 0.242 and 0.307 inches in diameter, ensuring compatibility with the included mounting bracket. The shoe is also included to provide additional chain support and reduce noise and vibration.

Common Applications and Problem Solving

• Prevents timing chain slack and misalignment in Ford Explorer and Fusion engines
• Reduces chain noise and vibration in Lincoln MKS and MKT models
• Helps maintain proper valve timing in Mazda CX-9 vehicles
• Addresses premature wear issues caused by faulty or worn guides
• Supports engine longevity by ensuring consistent timing chain tension

Installation Notes and Tips

Installation of the Cloyes Timing Chain Guide 9-5695 requires removal of the timing cover and careful alignment of the guide with the timing chain. The included mounting bracket and shoe simplify the process, but proper torque specifications should be followed to avoid damage. It is recommended to inspect the timing chain and related components during installation to ensure overall system integrity.

Quality Assurance and Warranty

Cloyes manufactures its Timing Chain Guide components to meet or exceed OEM specifications, ensuring reliable performance and durability. While specific warranty details are not provided here, Cloyes products typically come with a limited warranty against defects in material and workmanship. Always verify warranty terms with the supplier or manufacturer.
