Cloyes 9-5696 Engine Timing Chain Tensioner Guide - Right

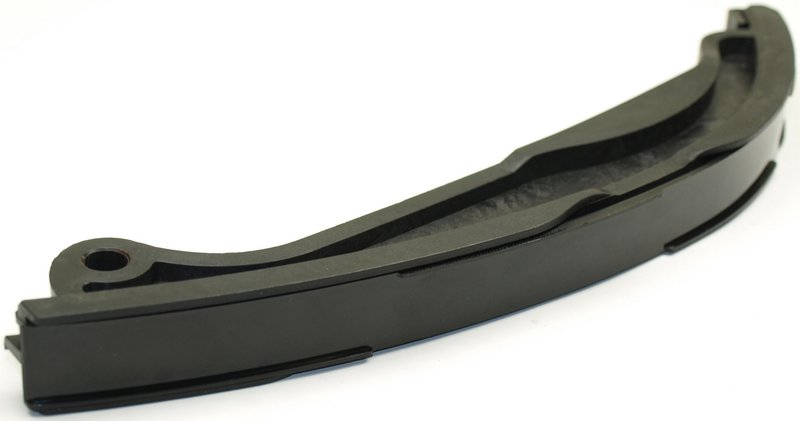

Cloyes Timing Chain Tensioner Guide 9-5696

The Cloyes 9-5696 timing chain tensioner guide is a direct-fit engine timing chain guide for select Ford, Lincoln, and Mazda applications. It is built with a nylon shoe and mounting bracket to help maintain timing chain alignment and stable chain tracking in the valve train.

Key Features

• Brand: Cloyes Timing Chain Tensioner Guide
• Part number: 9-5696
• Material: nylon
• Shoe included with mounting bracket included
• Mounting hole quantity: 1
• Engine timing chain guide for the valve train
• CAD-designed and manufactured with advanced materials
• Extensively tested for function and durability

Product Details

Cloyes timing guides are engineered to meet or exceed OEM performance requirements and are designed for quiet, maintenance-free operation. This timing chain guide serves as the track for the chain that connects the crankshaft and camshaft, helping keep chain movement controlled in the engine. The 9-5696 is listed for right-side applications on 2011-2019 Ford Explorer, 2012-2019 Ford Flex, 2012-2019 Ford Taurus, 2011-2012 Ford Fusion, 2011-2019 Lincoln MKT, 2011-2016 Lincoln MKS, 2011-2012 Lincoln MKZ, and 2011-2015 Mazda CX-9, plus 2011 Mazda 6. This part cross-references BA5Z6K255A for the same application.

Common Repair Uses

• Timing chain noise from a worn guide surface
• Chain tracking issues in the engine valve train
• Service replacement during timing chain repair
• Wear-related chain control problems on right-side timing components
• Restoration of proper chain guidance after inspection

Installation Notes

Verify engine code and application details before installation, especially for 2011-2012 Ford and Lincoln models noted with dual tooth water pump sprocket requirements. Cloyes recommends replacing the chain tensioner, sprockets, and guides when the timing chain is replaced to maintain proper chain control. Confirm the correct right-side position and compare the original part to the vehicle-specific catalog listing before assembly.

Quality Assurance

Cloyes manufactures this timing chain tensioner guide using CAD-designed components and advanced materials, then tests each part for function and durability to support consistent engine timing performance.
