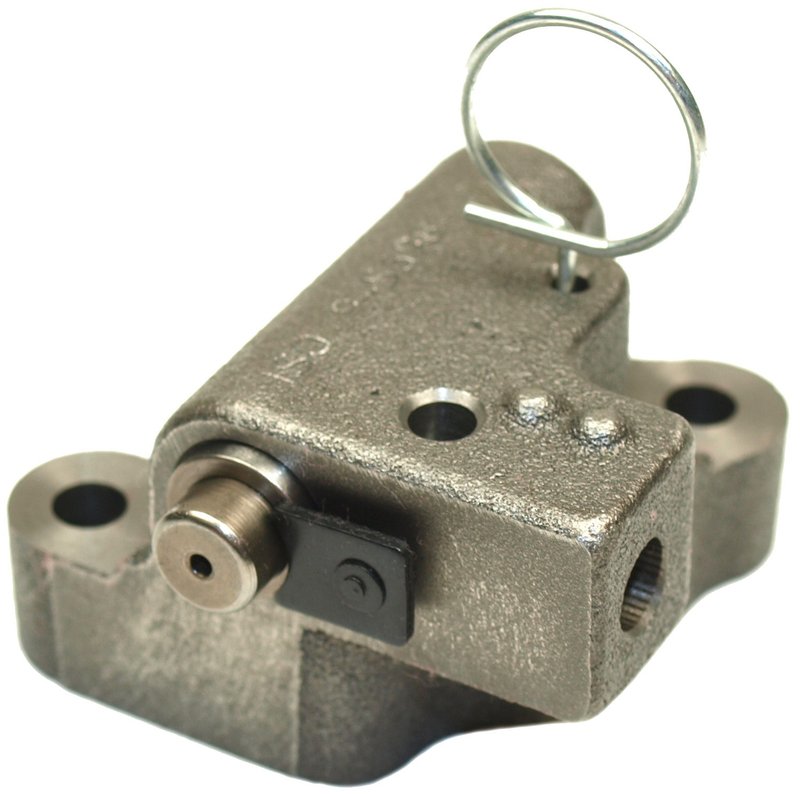

Cloyes 9-5698 Engine Timing Chain Tensioner - Right

Reliable Timing Chain Tensioner for Ford, Lincoln, and Mazda Vehicles

The Cloyes Timing Chain Tensioner 9-5698 is engineered to maintain optimal timing chain tension in select Ford, Lincoln, and Mazda models. Designed with a durable cast material and hydraulic/spring tensioner type, this component ensures consistent engine valve timing performance.

Key Features of Cloyes Timing Chain Tensioner 9-5698

• Constructed from robust cast material for durability
• Hydraulic/spring tensioner type for automatic chain tension adjustment
• Activation via an activation pin for precise operation
• Compact dimensions: 2.24" length, 2.30" width, and 1.47" height
• Includes spring but excludes shoe, pulley, bolts, and gaskets
• Two mounting holes with an inside diameter of 0.266" each
• Non-adjustable and not manually adjustable for consistent tension

About the Cloyes Timing Chain Tensioner Product Line

The Cloyes Timing Chain Tensioner line focuses on delivering reliable valve train components that maintain proper timing chain tension without manual adjustment. The 9-5698 model exemplifies this with its hydraulic/spring mechanism, designed to adapt automatically to engine conditions, reducing wear and maintaining engine efficiency in compatible vehicles.

Detailed Product Description

This engine timing chain tensioner is specifically designed for use in various Ford, Lincoln, and Mazda vehicles, including models such as the Ford F-150, Explorer, Taurus, Transit series, Lincoln Navigator, MKS, MKT, MKZ, and the Mazda CX-9. The tensioner’s cast construction provides strength and resistance to wear, while the hydraulic/spring tensioner type ensures the timing chain remains properly tensioned during engine operation. The activation pin mechanism allows for precise engagement, and the compact size fits seamlessly within the valve train assembly. Note that this tensioner does not include a shoe, pulley, bolts, or gaskets, so these components must be sourced separately if needed.

Common Applications and Issues Addressed

• Maintains proper timing chain tension to prevent chain slack
• Reduces engine noise caused by loose timing chains
• Prevents premature wear of timing chain and sprockets
• Helps avoid engine misfires related to timing chain issues
• Supports smooth engine performance in Ford, Lincoln, and Mazda models

Installation Notes and Tips

Ensure the engine is cool before installation. The Cloyes 9-5698 timing chain tensioner is not manually adjustable, so proper alignment and secure mounting using the two mounting holes are critical. Use the activation pin to engage the tensioner during installation. Verify compatibility with your specific vehicle model and engine type before proceeding. Since bolts and gaskets are not included, use OEM or compatible hardware for installation.

Quality Assurance and Warranty

Cloyes manufactures its timing chain tensioners to meet or exceed OEM specifications, ensuring reliable performance and durability. While specific warranty details for part number 9-5698 are not provided here, Cloyes products typically come with a limited warranty against defects in material and workmanship. Consult the product packaging or manufacturer for exact warranty terms.
