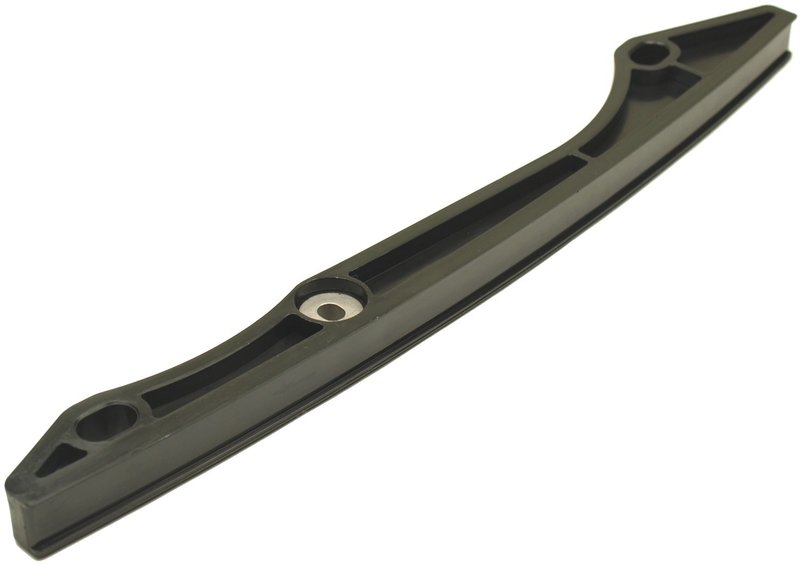

Cloyes 9-5736 Engine Timing Chain Guide - Left

Overview of Cloyes Timing Chain Guide 9-5736

The Cloyes Timing Chain Guide 9-5736 is engineered for reliable performance in Ford and Lincoln engines, specifically designed for models like the F-150, Mark LT, and Mustang. This engine timing chain guide ensures proper chain tension and alignment, contributing to the overall valve train efficiency.

• Constructed from durable nylon material for wear resistance
• Includes mounting bracket and shoe for secure installation
• Dimensions: 12.5 inches (317.5 mm) length, 1.551 inches (39.4 mm) height, 0.706 inches (17.9 mm) width
• Features three mounting holes with diameters of 0.310, 0.596, and 0.613 inches (7.87, 15.13, 15.57 mm)
• Compatible with Ford F-150, Lincoln Mark LT, and Ford Mustang models

About the Cloyes Timing Chain Guide Product Line

The Cloyes Timing Chain Guide product line focuses on precision-engineered components that maintain optimal timing chain function within the valve train system. This guide, part number 9-5736, is designed to meet OEM specifications, providing consistent chain tension and reducing wear on the timing chain and sprockets. The inclusion of a mounting bracket and shoe enhances installation stability and longevity.

Detailed Product Description

This engine timing chain guide is made from high-quality nylon, chosen for its strength and resistance to heat and friction. Measuring 12.5 inches in length and 1.551 inches in height, it fits precisely within the valve train assembly of select Ford and Lincoln vehicles. The guide includes three mounting holes with varying diameters to accommodate secure attachment points, ensuring the timing chain remains properly aligned during engine operation. The included mounting bracket and shoe provide additional support, reducing chain vibration and noise.

Common Applications and Issues Addressed

• Prevents timing chain slack and misalignment
• Reduces engine noise caused by chain vibration
• Minimizes premature wear of timing chain components
• Helps maintain accurate valve timing for engine performance
• Addresses issues related to stretched or damaged timing chain guides

Installation Notes and Tips

When installing the Cloyes Timing Chain Guide 9-5736, ensure the engine is cool and the timing chain is properly positioned. Use the included mounting bracket and verify that all three mounting holes align correctly with the engine block. Tighten mounting bolts to manufacturer torque specifications to avoid guide movement or damage. It is recommended to inspect the timing chain and related components for wear during installation.

Quality Assurance and Warranty

Cloyes manufactures the Timing Chain Guide 9-5736 to meet or exceed OEM standards, ensuring durability and reliable performance. The nylon material and precise engineering contribute to long service life under normal operating conditions. Warranty coverage details should be confirmed with the product supplier or manufacturer documentation.
