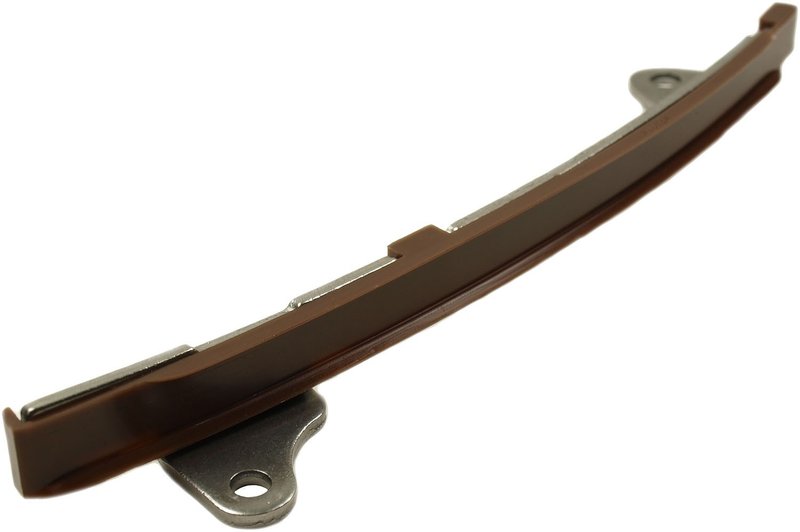

Cloyes 9-5796 Engine Timing Chain Guide - Left

Reliable Timing Chain Guide for Lexus, Toyota, and Scion Vehicles

The Cloyes Timing Chain Guide 9-5796 is engineered to maintain precise timing chain alignment in select Lexus, Toyota, and Scion models. Designed with durable nylon and steel materials, this guide ensures consistent engine valve train performance and longevity.

• Constructed from high-quality nylon and steel for durability
• Includes mounting bracket and shoe for secure installation
• Dimensions: 12.125 inches (length), 2.02 inches (height), 1.051 inches (width)
• Two mounting holes with diameters of 0.335 and 0.414 inches for precise fitment
• Compatible with Lexus, Toyota, and Scion models including Avalon, Camry, ES300h, Highlander, NX300h, RAV4, Sienna, tC, and Venza

About the Cloyes Timing Chain Guide Product Line

The Cloyes Timing Chain Guide line focuses on providing reliable valve train components that support accurate timing chain operation. This product line is designed to meet OEM specifications, offering components like the 9-5796 guide that combine nylon and steel materials to reduce wear and maintain engine timing integrity across various vehicle models.

Product Details and Specifications

The Cloyes 9-5796 Timing Chain Guide measures 12.125 inches in length, 2.02 inches in height, and 1.051 inches in width, making it suitable for specific engine configurations. It features two mounting holes with diameters of 0.335 and 0.414 inches, ensuring a secure fit during installation. The included mounting bracket and shoe provide additional stability, helping to maintain proper chain tension and alignment within the valve train system.

Common Applications and Issues Addressed

• Prevents timing chain slack and misalignment
• Reduces engine noise caused by chain vibration
• Helps avoid premature wear of timing components
• Supports smooth engine operation in Lexus, Toyota, and Scion models
• Addresses timing chain guide wear or damage in vehicles like the Toyota Camry and Lexus RX

Installation Notes and Tips

When installing the Cloyes Timing Chain Guide 9-5796, ensure the mounting bracket and shoe are properly aligned with the engine block. Verify that the mounting holes correspond to the specified diameters for a secure fit. It is recommended to inspect the timing chain and related components for wear during installation to maintain optimal engine performance.

Quality Assurance and Warranty

Cloyes manufactures the 9-5796 Timing Chain Guide to meet stringent quality standards, using durable nylon and steel materials for long-lasting performance. While specific warranty details are not provided, Cloyes products typically adhere to OEM quality requirements, ensuring reliable operation within the valve train system.
