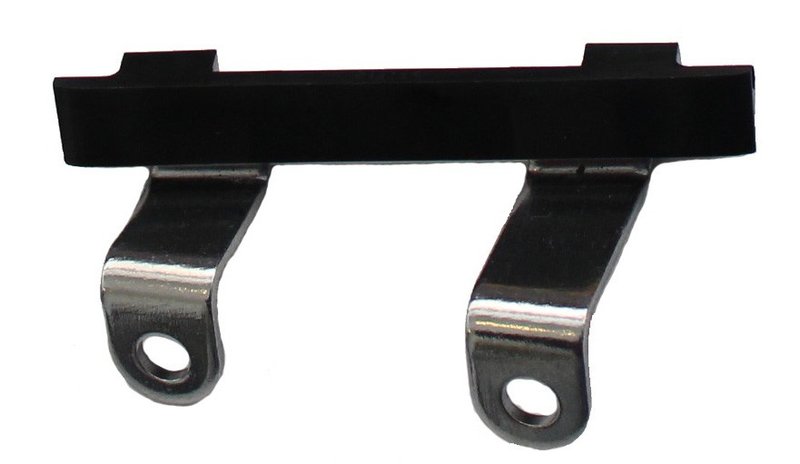

Cloyes 9-5868 Engine Timing Chain Guide - Upper

Cloyes Timing Chain Guide for Honda Applications

The Cloyes 9-5868 timing chain guide is an upper engine timing component built for precise chain tracking and stable valve timing. It is a direct-fit style replacement for select Honda Insight, Clarity, and Fit models, with nylon and steel construction for controlled chain movement and quiet operation.

Cloyes timing chain guides are engineered with current material and design technology to support OE-level timing system performance. For timing service, Cloyes recommends replacing the chain, tensioners, guides, and sprockets together to maintain timing system integrity.

Key Features

• Engine timing chain guide for the upper timing position
• Nylon and steel construction for strength and wear resistance
• Includes mounting bracket and shoe
• Two mounting holes for secure installation
• Dimensions: 3.705 in. length, 1.521 in. width, 1.482 in. height
• Mounting hole diameter: 0.29-0.295 in. (7.36-7.38 mm)
• Cross-reference part numbers: 14540-5R0-003 and 95868

Product Details

This Cloyes timing chain guide, part number 9-5868, is designed to keep the timing chain aligned between the crankshaft and camshaft so the engine maintains proper timing. It is a practical replacement for Honda Insight, Honda Clarity, and Honda Fit upper timing chain guide service, especially when addressing chain noise, guide wear, or timing system maintenance. Cloyes has focused on timing systems since 1921, and the 9-5868 reflects that experience with OE-style fit and durable construction.

Compatible With: 2019-2022 Honda Insight, upper; 2018-2021 Honda Clarity, upper; 2015-2020 Honda Fit, upper.

Common Issues This Part Can Address

• Timing chain noise from a worn or damaged guide
• Chain misalignment in the upper timing area
• Visible wear on the guide shoe surface
• Timing system service needs during chain replacement
• Loss of stable chain tracking between crankshaft and camshaft

Installation Notes

Install the guide in the upper timing position and verify mounting hole alignment before tightening. During timing service, inspect the chain, tensioners, and sprockets for wear and replace related components as needed to preserve timing accuracy. Confirm vehicle application by year, make, model, and engine timing configuration before installation.

Quality Assurance

Cloyes timing components are backed by an industry-leading warranty and technical support. The brand’s timing system focus and OE-oriented design standards make the 9-5868 a dependable choice for Honda timing chain guide replacement.
