Cloyes 9-6023 Engine Timing Chain Guide - Upper
OE Quality 60-Day Returns
Cloyes
 Engine Timing Chain Guide

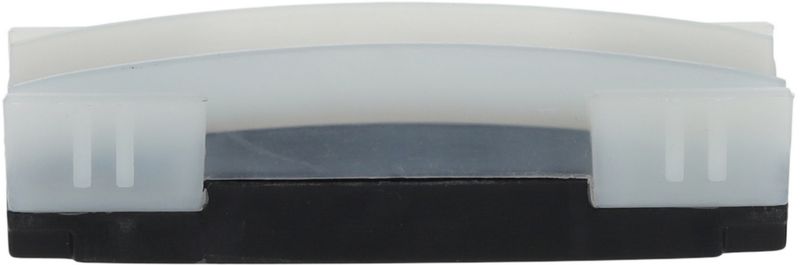

Cloyes 9-6023 Engine Timing Chain Guide - Upper

Brand Cloyes 9-6023
Position Upper
Product line Engine Timing Chain Guide
Fits Mercedes-Benz · 190 vehicles

OE-level performance. Engine timing chain guide engineered for quiet operation and durable service.

Timing system focus. Supports proper chain alignment between the crankshaft and camshaft.

Trusted since 1921. Cloyes has specialized in automotive timing systems for over a century.

Cross-references 2780520316 for the same application. See all 1.

$15.11Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $15.11
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Chain Guide options

Overview

The Cloyes 9-6023 engine timing chain guide is a direct-fit timing system component for Mercedes-Benz applications that use an upper guide. It helps maintain chain alignment between the crankshaft and camshaft for proper timing control and quieter operation.

Fits 2012-2022 Mercedes-Benz applications listed below, upper. This part number, 9-6023, is used across a wide range of Mercedes-Benz models including C43 AMG, E450, GLE63 AMG, and S550 applications.

Key Features

  • Engine timing chain guide for upper timing system service
  • Helps keep the timing chain aligned between crankshaft and camshaft
  • Built with updated design and material technology for durability
  • Engineered for quiet operation and OEM-level performance
  • Suitable for Mercedes-Benz timing system maintenance on multiple model lines

Detailed Description

Cloyes 9-6023 is an upper engine timing chain guide designed for Mercedes-Benz timing system service where precise chain tracking is critical. As part of the valve train and timing assembly, the guide supports correct chain path and helps preserve timing accuracy during engine operation. The 9-6023 part number appears in fitments for Mercedes-Benz C-Class, E-Class, S-Class, GLE, GLS, SL, and related AMG models, making it a relevant replacement for a broad range of applications.

Cloyes has supplied timing system components since 1921, and this guide reflects that focus on fitment, material selection, and service life. For timing system integrity, Cloyes recommends replacing the chain, tensioners, guides, and sprockets together during service. This part cross-references 2780520316 for the same application.

What It Helps Address

  • Timing chain misalignment
  • Excess chain noise from worn guide surfaces
  • Timing system wear during service intervals
  • Loss of chain tracking stability in the upper timing assembly

Installation Notes

Install as an upper timing chain guide in the specified Mercedes-Benz applications only. Verify engine code, timing system layout, and model-year coverage before service. For complete timing system repair, inspect the chain, tensioners, and sprockets at the same time and replace worn components together.

Quality Assurance

Cloyes positions this timing guide for OEM-level performance and backs its timing system products with technical support and an industry-leading warranty.

Related reading

This part fits 190 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
