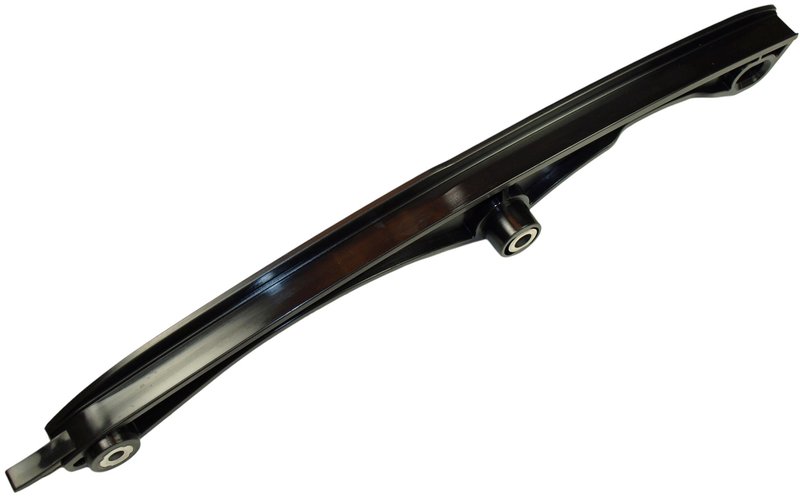

Cloyes 9-6052 Engine Timing Chain Guide - Left

Cloyes Timing Chain Guide for Ford and Lincoln

The Cloyes 9-6052 timing chain guide is built for left-side timing system service on select Ford and Lincoln engines. It uses a nylon guide surface with an integrated mounting bracket and shoe to help maintain chain alignment, reduce noise, and support consistent camshaft and crankshaft timing.

Key Features

• Nylon guide material for controlled chain contact and wear resistance
• Left-side timing chain guide for select Ford F-150, Ford Expedition, Ford GT, and Lincoln Navigator applications
• Includes mounting bracket and shoe
• 14 in. length, 1.6 in. height, and 1.162 in. width
• Three mounting holes with multiple hole diameters for application-specific fitment
• Engine timing chain guide from Cloyes part number 9-6052

Product Details

Cloyes has supplied timing system components since 1921, and the 9-6052 timing chain guide reflects that focus on timing accuracy and durability. This engine timing chain guide is engineered to keep the timing chain properly tracked between the crankshaft and camshaft, helping preserve valve timing under normal engine operation. For timing service, Cloyes recommends replacing the chain, tensioners, guides, and sprockets together to maintain timing system integrity. This part cross-references Ford OE number HL3Z6B274A for the same application.

What This Part Helps Address

• Timing chain noise from a worn or damaged guide surface
• Chain misalignment in the left-side timing assembly
• Uneven wear on timing components during service intervals
• Loss of timing system stability caused by guide deterioration
• Service issues on Ford F-150, Ford Expedition, Ford GT, and Lincoln Navigator timing systems

Installation Notes and Tips

Fits 2017-2021 Ford F-150, Left. Fits 2018-2021 Ford Expedition, Left. Fits 2017-2021 Ford GT, Left. Fits 2018-2021 Lincoln Navigator, Left. Verify engine configuration and left-side timing component placement before installation. Inspect the chain, tensioners, and sprockets during service, and replace worn timing components together to help restore proper alignment.

Quality Assurance

Cloyes timing chain guides are produced with current material and design standards to support quiet operation and durability that meet or exceed OEM performance expectations. Backed by Cloyes technical support and an industry-leading warranty.
