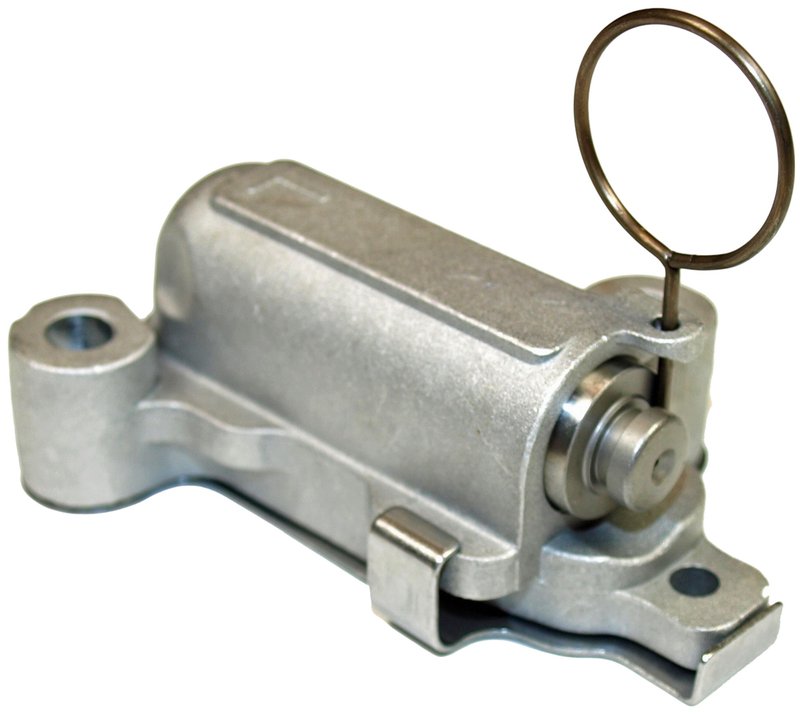

Cloyes 9-6054 Engine Timing Chain Tensioner - Left

Cloyes 9-6054 Timing Chain Tensioner

The Cloyes 9-6054 timing chain tensioner is a metal engine timing component built to maintain proper chain tension in supported Ford and Lincoln applications. It uses hydraulic and spring tension with an activation pin design to help keep the timing chain controlled during engine operation.

Compatible With 2017-2021 Ford F-150, left; 2018-2021 Ford Expedition, left; and 2018-2021 Lincoln Navigator, left. This timing chain tensioner is part of Cloyes timing system service coverage for vehicles that require precise chain control at the left-side position.

Key Features

• Part number: 9-6054
• Hydraulic and spring tensioner design
• Metal housing and metal construction
• Gray finish
• Activation pin type
• 2 mounting holes with 0.273 in. diameter
• No adjustable mechanism
• No gasket, seal, bolts, or hardware included

Timing System Details

Cloyes timing chain tensioners are engineered to maintain appropriate chain tension for stable valve timing and consistent engine operation. For timing system service, Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets to help restore full timing system integrity. The 9-6054 is a direct-fit timing chain tensioner for select Ford F-150, Ford Expedition, and Lincoln Navigator engines with left-side application coverage.

This part cross-references Monroe Shocks & Struts (e.g., 96054, HL3Z6L266A) for the same application.

Common Uses

• Corrects timing chain slack in the left-side timing system
• Addresses chain noise caused by worn tensioner components
• Helps maintain accurate camshaft and crankshaft synchronization
• Supports repair of timing system wear in high-mileage engines
• Restores proper chain control during engine start-up and operation

Installation Notes

Verify engine code and left-side fitment before installation. Replace the timing chain, guides, and sprockets during service when wear is present, and follow factory service procedures for timing alignment and tensioner activation. Confirm all sealing surfaces are clean and inspect adjacent timing components before reassembly.

Quality Assurance

Cloyes has specialized in automotive timing systems since 1921 and backs its products with industry-leading technical support. The 9-6054 reflects that timing-system focus with OE-style construction for supported applications.

• Fits 2017-2021 Ford F-150, left
• Fits 2018-2021 Ford Expedition, left
• Fits 2018-2021 Lincoln Navigator, left
