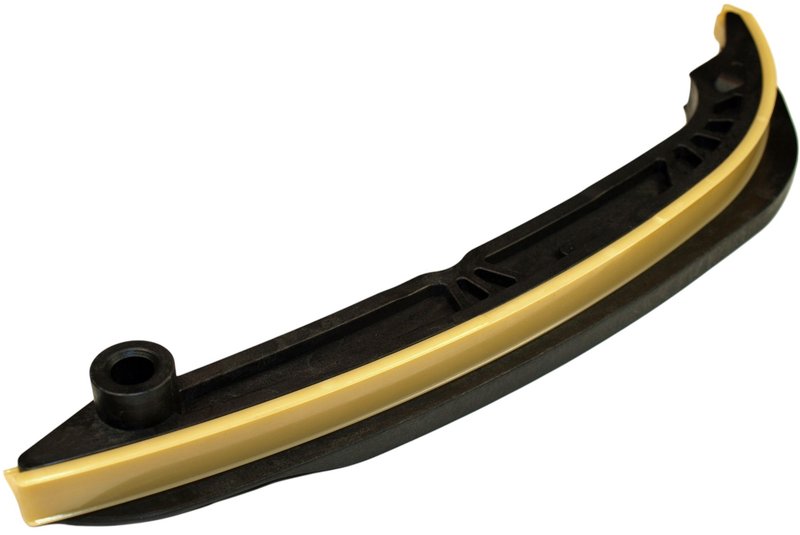

Cloyes 9-6056 Engine Timing Chain Tensioner Guide - Left

Cloyes Timing Chain Tensioner Guide 9-6056

The Cloyes 9-6056 timing chain tensioner guide is a left-side engine timing component built for precise chain tracking and stable valve timing. It is designed for select Ford and Lincoln applications, including the Ford F-150, Ford Expedition, and Lincoln Navigator.

Cloyes timing chain guides are engineered with current material and design technology to support quiet operation and consistent durability. For timing system service, Cloyes recommends replacing the chain, tensioners, guides, and sprockets together to maintain timing system integrity.

Key Features

• Nylon guide material for timing chain contact surfaces
• Includes shoe and mounting bracket
• Left-side timing chain tensioner guide
• Measures 11.85 in. long, 1.32 in. wide, and 1.83 in. high
• Single mounting hole design with 1.085 in. mounting hole diameter
• Cross-reference part numbers: 96056 and HL3Z6K255A
• Fits 2017-2021 Ford F-150, left
• Fits 2018-2021 Ford Expedition, left
• Fits 2018-2021 Lincoln Navigator, left

Product Details

This Cloyes timing chain tensioner guide, part number 9-6056, is part of the engine valve train timing system and helps maintain proper crankshaft and camshaft alignment. The nylon construction is selected for controlled chain contact, while the included shoe and mounting bracket support correct guide placement in the timing assembly. For buyers searching for a timing chain guide for Ford F-150 2017-2021 left side or a left timing chain tensioner guide for Lincoln Navigator 2018-2021, this part matches those applications directly.

What It Helps Address

• Timing chain noise from worn guide surfaces
• Chain tracking issues caused by damaged or fatigued guides
• Improper camshaft and crankshaft synchronization
• Timing system wear during high-mileage service intervals
• Replacement needs during a full timing chain service on Ford Expedition, Ford F-150, or Lincoln Navigator

Installation Notes

Install as part of a complete timing service and verify left-side placement before assembly. Inspect the chain, tensioners, and sprockets for wear, and replace related components together when service history is unknown. Confirm engine application and position against the vehicle’s timing system layout before installation.

Quality Assurance

Cloyes has specialized in automotive timing systems since 1921 and backs its timing components with technical support and an industry-leading warranty. The 9-6056 is built to meet or exceed OEM performance expectations for the listed Ford and Lincoln applications.
