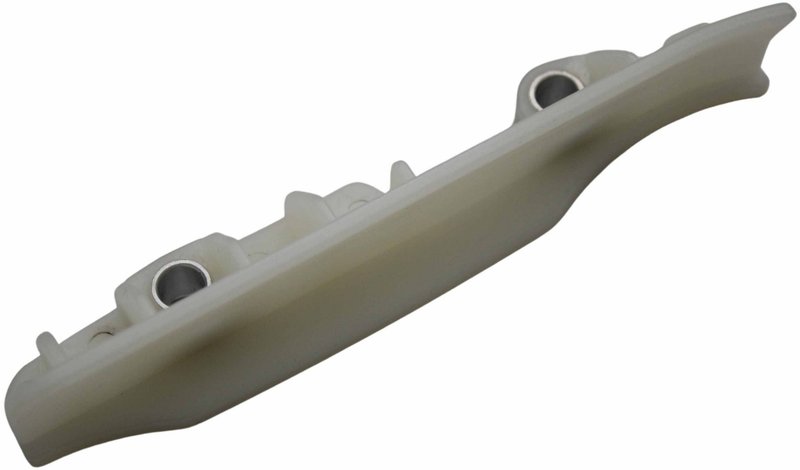

Cloyes 9-6060 Engine Timing Chain Guide - Upper

Cloyes Timing Chain Guide 9-6060

The Cloyes 9-6060 timing chain guide is an upper engine timing component built for precise chain tracking and stable valve timing. It is a direct-fit style replacement for select Audi and Volkswagen applications, including Audi A3, Audi A4, Audi A3 Quattro, Volkswagen Passat, Volkswagen Tiguan, and Volkswagen Beetle models listed below.

Key Features

• Nylon guide surface for controlled timing chain movement
• Mounting bracket included for proper installation support
• Upper timing chain guide position
• Two mounting holes with 6.31-6.33 mm diameter
• Dimensions: 4.805 in length, 0.879 in width, 0.863 in height
• Engine timing chain guide from Cloyes timing systems

Product Details

Cloyes timing chain guide 9-6060 is engineered to serve as the track that keeps the timing chain aligned between the crankshaft and camshaft. The nylon construction helps promote quiet operation and consistent chain control, while the bracketed design supports accurate placement in the timing system. Cloyes has focused on timing components since 1921, and this guide reflects that experience with materials and design intended to meet or exceed OEM performance expectations.

This part cross-references TYC 96060 and 06K109469P for the same application. It is a strong match for buyers searching for an upper timing chain guide for Audi A3, Audi A4, Volkswagen Passat, or Volkswagen Tiguan service work.

What This Part Helps Address

• Timing chain noise from a worn or damaged guide surface
• Chain misalignment in the upper timing system
• Excessive chain movement caused by guide wear
• Timing instability related to degraded guide material
• Service replacement needs during timing system repair on Audi and Volkswagen engines

Installation Notes and Tips

Install this guide in the upper timing chain position only. Cloyes recommends replacing the timing chain, tensioners, guides, and sprockets together during timing service to maintain total system integrity. Verify fitment by year, make, model, and position before installation, especially on 2017-2020 Audi A3, 2017-2019 Audi A4, 2019 Audi A3 Quattro, 2018-2020 Volkswagen Passat, 2018-2020 Volkswagen Tiguan, and 2018-2019 Volkswagen Beetle applications.

Quality Assurance

Cloyes has been a trusted name in automotive timing systems for more than a century and backs its products with industry-leading technical support. The 9-6060 timing chain guide is built with current design and material technology to support durable, quiet timing system operation.
