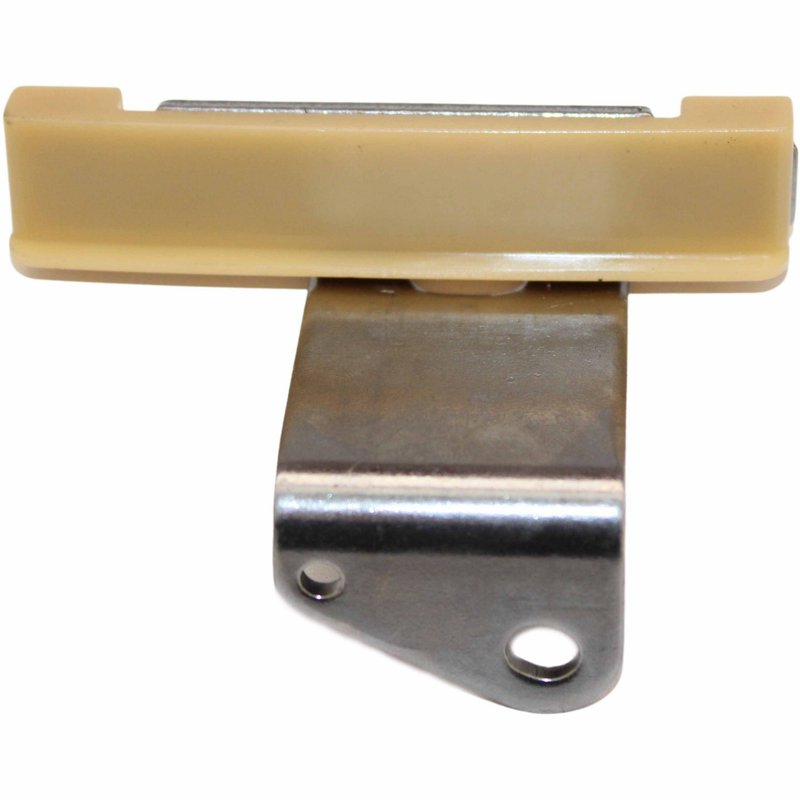

Cloyes 9-6081 Engine Timing Chain Guide - Upper

Cloyes Timing Chain Guide 9-6081

The Cloyes 9-6081 timing chain guide is built for precise chain control in the engine timing system. It is a direct-fit upper timing chain guide for select Dodge Dart applications, helping maintain proper crankshaft and camshaft alignment.

Key Features

• Brand: Cloyes Timing Chain Guide
• Part number: 9-6081
• Material: nylon and steel construction
• Mounting bracket included for correct installation support
• Shoe included for timing chain contact surface
• Two mounting holes with 4.07 mm and 6.21 mm diameters
• Dimensions: 84.88 mm length, 51.25 mm height, 43.8 mm width
• Upper timing chain guide position

Product Details

Cloyes has focused on timing system components since 1921, and the 9-6081 reflects that experience in a guide designed for stable chain tracking and quiet operation. The nylon and steel design supports durability in a high-wear engine environment, while the guide profile helps keep the timing chain aligned as it moves between the crankshaft and camshaft. This part cross-references 96081 and 5047639AA for the same application. Fits 2013-2016 Dodge Dart, upper. Fits 2013-2016 Dodge Dart, upper timing chain guide applications.

What It Helps Address

• Timing chain noise from a worn guide surface
• Chain misalignment in the upper timing system
• Excessive wear on timing components
• Loss of timing system stability during engine operation
• Service needs when replacing timing chains, tensioners, guides, and sprockets together

Installation Notes

Verify upper guide placement and confirm mounting hole alignment before installation. Cloyes recommends servicing the timing chain, tensioners, guides, and sprockets together to maintain total timing system integrity. Always confirm vehicle application by year, make, model, and engine timing configuration before ordering.

Quality Assurance

Cloyes is a long-established timing system manufacturer with technical support and an industry-leading warranty backing its products. The 9-6081 is engineered to meet or exceed OEM performance expectations for timing system service.
