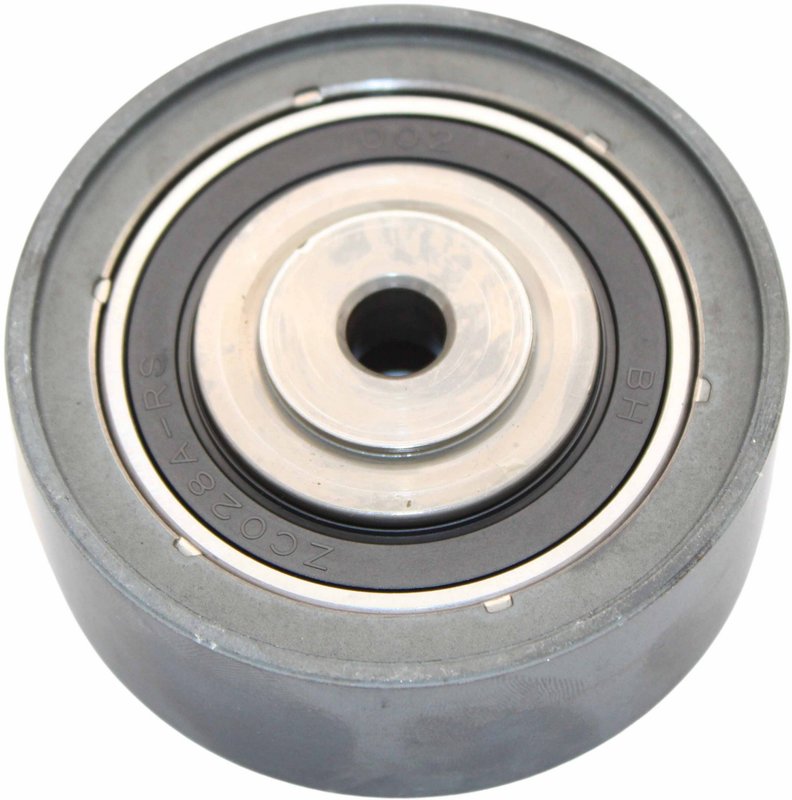

Cloyes 9-6088 Engine Timing Belt Idler - Left

Brand	Cloyes 9-6088
Position	Left
Material	0
Pulley Type	0
Bolt Hole Quantity	0
Width	0
Width	29
Outside Diameter	0
Outside Diameter	80.02
Grade Type	Standard replacement
Bolts Included	0
Bolt Thread Length	0
Mounting Hole Diameter	0.4015
Mounting Bracket Included	0
Mounting Hole Diameter (uom:mm)	10.2
Product line	Timing Belt Idler
Fits	Volkswagen · 17 vehicles

Standard replacement. Made for replacing worn timing belt idlers.

Timing belt idler. Helps route the timing belt in its correct position.

Available for individual purchase or as part of complete timing kits.

Cross-references 03L109244J and 96088 for the same application. See all 2.

$42.09Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Engine Timing Belt Idler options

Cloyes Timing Belt Idler 9-6088

Cloyes 9-6088 is a standard replacement timing belt idler for engine timing systems that use a left-side idler pulley. It helps route the timing belt in the correct path and supports consistent belt tracking in Volkswagen timing belt service.

Key Features

Timing belt idler pulley for engine valve train service
Standard replacement grade for routine maintenance and repair
Outside diameter: 80.02 mm
Width: 29 mm
Mounting hole diameter: 10.2 mm (0.4015 in)
Left position application
Cross-reference part number: 03L109244J

Product Details

This Cloyes timing belt idler is built for Volkswagen timing belt systems that require a left-side idler pulley. It is used in applications such as 2012-2022 Volkswagen Amarok, left; 2014-2016 Volkswagen Vento, left; 2018 Volkswagen Vento, left; and 2013-2014 Volkswagen Passat, left. The 9-6088 part number is also referenced as 96088 for catalog matching.

As part of the timing belt path, the idler helps maintain belt routing through the engine’s valve train components. Cloyes positions this Timing Belt Idler line as a replacement solution for worn timing belt idlers, available for individual service work or as part of a timing kit.

What It Helps Address

Timing belt routing issues caused by a worn idler pulley
Belt noise from a damaged or rough-running pulley
Uneven belt tracking in the timing system
Service replacement for left-side timing belt idler wear
Maintenance on Volkswagen Amarok, Vento, and Passat timing systems

Installation Notes

Verify the engine’s timing belt layout, left-side position, outside diameter, width, and mounting hole diameter before installation. Match the vehicle year, make, model, and position exactly to the listed fitment for 2012-2022 Volkswagen Amarok, 2014-2016 Volkswagen Vento, 2018 Volkswagen Vento, and 2013-2014 Volkswagen Passat. Always follow factory timing procedures and confirm belt alignment after service.

Quality Assurance

Cloyes timing components are cataloged for replacement service in engine timing applications, and this idler follows standard replacement specifications for fitment-based repair work.

This part fits 17 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Fuel Type	Position	Notes
2022	Volkswagen	Amarok	2.0L	L4	—	Left	Timing Belt Idler
2021	Volkswagen	Amarok	2.0L	L4	—	Left	Timing Belt Idler
2020	Volkswagen	Amarok	2.0L	L4	—	Left	Timing Belt Idler
2019	Volkswagen	Amarok	2.0L	L4	—	Left	Timing Belt Idler
2018	Volkswagen	Amarok	2.0L	L4	—	Left	Timing Belt Idler
2018	Volkswagen	Vento	1.5L	L4	—	Left	Timing Belt Idler
2017	Volkswagen	Amarok	2.0L	L4	—	Left	Timing Belt Idler
2016	Volkswagen	Amarok	2.0L	L4	—	Left	Timing Belt Idler
2016	Volkswagen	Vento	1.5L	L4	—	Left	Timing Belt Idler
2015	Volkswagen	Amarok	2.0L	L4	—	Left	Timing Belt Idler
2015	Volkswagen	Vento	1.6L	L4	DIESEL	Left	Timing Belt Idler
2014	Volkswagen	Amarok	2.0L	L4	DIESEL	Left	Timing Belt Idler
2014	Volkswagen	Passat	2.0L	L4	—	Left	Timing Belt Idler
2014	Volkswagen	Vento	1.6L	L4	DIESEL	Left	Timing Belt Idler
2013	Volkswagen	Amarok	2.0L	L4	DIESEL	Left	Timing Belt Idler
2013	Volkswagen	Passat	2.0L	L4	—	Left	Timing Belt Idler
2012	Volkswagen	Amarok	2.0L	L4	DIESEL	Left	Timing Belt Idler
No rows match your filter.

Directly replaces or cross-references 2 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

03L109244J96088
