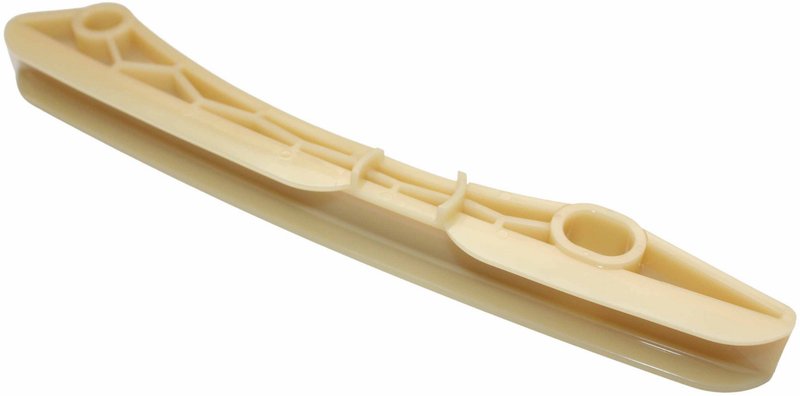

Cloyes 9-6094 Engine Timing Chain Guide

Brand	Cloyes 9-6094
Material	Nylon
Timing Chain Row Quantity	0
Length	234.188
Length	9.22
Mounting Bracket Included	Yes
Height (uom:in)	1.42
Height (uom:mm)	36.068
Mounting Hole Diameter (uom:in)	0.48
Mounting Hole Diameter (uom:mm)	12.192
Mounting Hole Quantity	2
Shoe Included	Yes
Width (uom:in)	0.72
Width (uom:mm)	18.288
Product line	Timing Chain Guide
Fits	Hyundai and Kia · 41 vehicles

OE-level performance. Built to meet or exceed OEM standards for dependable timing system operation.

Nylon construction. Helps deliver quiet operation and lasting durability.

Guide and shoe included. Complete timing chain guide assembly for service replacement.

Cross-references 96094 and 244312B700 for the same application. See all 2.

$28.81Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Engine Timing Chain Guide options

Cloyes Timing Chain Guide 9-6094

The Cloyes 9-6094 timing chain guide is an OE-style engine timing component built for precise chain tracking and stable valve timing. It is made with a nylon wear surface and includes a mounting bracket and shoe for proper chain support in the timing system.

Key Features

Nylon guide surface for controlled timing chain movement
Mounting bracket included for direct installation support
Shoe included for chain contact and alignment
Two mounting holes with 0.48 in. diameter
Overall length: 9.22 in.; width: 0.72 in.; height: 1.42 in.
Engine timing chain guide for Hyundai and Kia applications

Product Details

Cloyes timing chain guide 9-6094 is part of the brand’s Timing Chain Guide line, developed for engine timing systems that require accurate chain routing between the crankshaft and camshaft. Cloyes has focused on timing components since 1921, and this guide reflects that experience with materials and design intended to support quiet operation and durable service. For timing system integrity, Cloyes recommends replacing the chain, tensioners, guides, and sprockets together during service. This part cross-references 96094 and 244312B700 for the same application.

Compatible With select Hyundai and Kia models, including 2015-2019 Hyundai Sonata, 2016-2020 Kia Optima, 2017-2021 Kia Soul, 2017-2020 Hyundai Elantra, 2018-2021 Hyundai Kona, 2019-2022 Kia Forte, and 2021-2022 Kia Seltos. It also serves 2016-2018 Hyundai Tucson, 2018-2020 Hyundai Elantra GT, 2019-2020 Hyundai Veloster, 2017 Hyundai Veloster, 2017-2018 Kia Forte5, and 2017 Kia Forte Koup.

Common Repair Uses

Timing chain noise from a worn guide surface
Chain misalignment inside the timing cover
Uneven chain tracking during engine operation
Timing system service on Hyundai and Kia engines
Replacement of a damaged or worn chain guide

Installation Notes

Inspect the full timing set before installation and verify chain condition, tensioner operation, and sprocket wear. Replace related timing components together when wear is present to maintain correct engine timing. Confirm vehicle application by year, make, and model before ordering, especially for Hyundai Sonata, Kia Optima, and Kia Forte fitments.

Quality Assurance

Cloyes timing components are engineered with current material and design standards to meet or exceed OEM performance expectations for timing system service. The brand backs its products with technical support and an industry-leading warranty.

This part fits 41 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Notes
2022	Kia	Forte	1.6L	L4	Timing Chain Guide
2022	Kia	Seltos	1.6L	L4	Timing Chain Guide
2021	Hyundai	Kona	1.6L	L4	Timing Chain Guide
2021	Kia	Forte	1.6L	L4	Timing Chain Guide
2021	Kia	Seltos	1.6L	L4	Timing Chain Guide
2021	Kia	Soul	1.6L	L4	Timing Chain Guide
2020	Hyundai	Elantra	1.6L	L4	Timing Chain Guide
2020	Hyundai	Elantra GT	1.6L	L4	Timing Chain Guide
2020	Hyundai	Kona	1.6L	L4	Timing Chain Guide
2020	Hyundai	Veloster	1.6L	L4	Timing Chain Guide
2020	Kia	Forte	1.6L	L4	Timing Chain Guide
2020	Kia	Optima	1.6L	L4	Timing Chain Guide
2020	Kia	Soul	1.6L	L4	Timing Chain Guide
2019	Hyundai	Elantra	1.6L	L4	Timing Chain Guide
2019	Hyundai	Elantra GT	1.6L	L4	Timing Chain Guide
2019	Hyundai	Kona	1.6L	L4	Timing Chain Guide
2019	Hyundai	Sonata	1.6L	L4	Timing Chain Guide
2019	Hyundai	Veloster	1.6L	L4	Timing Chain Guide
2019	Kia	Forte	1.6L	L4	Timing Chain Guide
2019	Kia	Optima	1.6L	L4	Timing Chain Guide
2019	Kia	Soul	1.6L	L4	Timing Chain Guide
2018	Hyundai	Elantra	1.6L	L4	Timing Chain Guide
2018	Hyundai	Elantra GT	1.6L	L4	Timing Chain Guide
2018	Hyundai	Kona	1.6L	L4	Timing Chain Guide
2018	Hyundai	Sonata	1.6L	L4	Timing Chain Guide
2018	Hyundai	Tucson	1.6L	L4	Timing Chain Guide
2018	Kia	Forte5	1.6L	L4	Timing Chain Guide
2018	Kia	Optima	1.6L	L4	Timing Chain Guide
2018	Kia	Soul	1.6L	L4	Timing Chain Guide
2017	Hyundai	Elantra	1.6L	L4	Timing Chain Guide
2017	Hyundai	Sonata	1.6L	L4	Timing Chain Guide
2017	Hyundai	Tucson	1.6L	L4	Timing Chain Guide
2017	Hyundai	Veloster	1.6L	L4	Timing Chain Guide
2017	Kia	Forte Koup	1.6L	L4	Timing Chain Guide
2017	Kia	Forte5	1.6L	L4	Timing Chain Guide
2017	Kia	Optima	1.6L	L4	Timing Chain Guide
2017	Kia	Soul	1.6L	L4	Timing Chain Guide
2016	Hyundai	Sonata	1.6L	L4	Timing Chain Guide
2016	Hyundai	Tucson	1.6L	L4	Timing Chain Guide
2016	Kia	Optima	1.6L	L4	Timing Chain Guide
2015	Hyundai	Sonata	1.6L	L4	Timing Chain Guide
No rows match your filter.

Directly replaces or cross-references 2 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

96094244312B700
