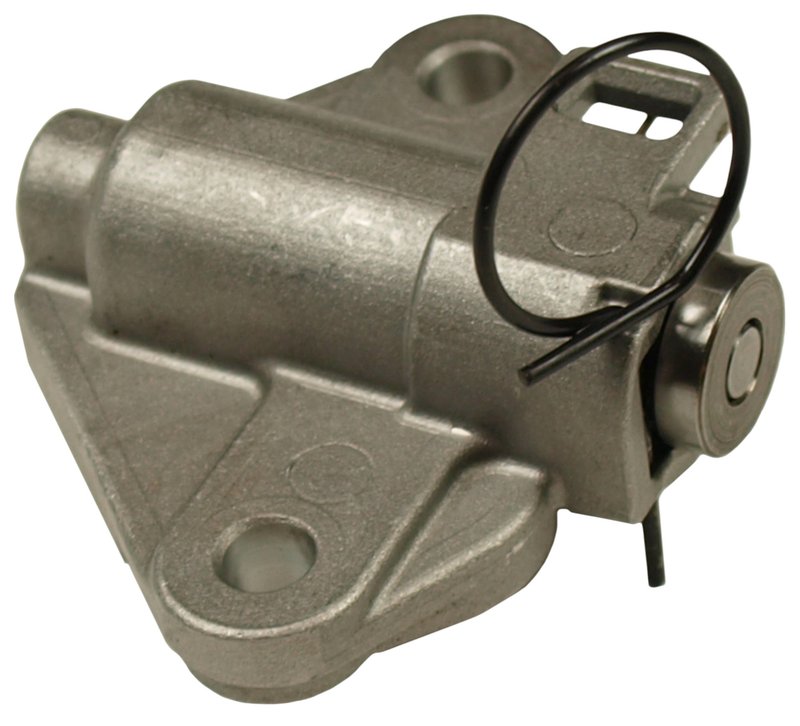

Cloyes 9-6100 Engine Timing Chain Tensioner

Cloyes 9-6100 Timing Chain Tensioner

The Cloyes 9-6100 engine timing chain tensioner is built for precise chain control in timing system service. It uses hydraulic and spring tensioning methods to maintain proper chain tension, helping support stable valve timing in the 2016-2020 Mazda MX-5 and 2016-2020 Mazda MX-5 Miata.

Key Features

• Engine timing chain tensioner for valve train service
• Hydraulic and spring tensioner design
• Aluminum housing with steel construction
• Gray finish
• Activation pin style
• Two mounting holes with 0.257 in. diameter
• No adjustable mechanism

Detailed Description

Cloyes 9-6100 is an engine timing chain tensioner engineered to maintain appropriate timing chain tension during operation. Cloyes designs timing system components for service applications where chain control is critical, and this tensioner uses hydraulic pressure and spring force to help keep the chain properly loaded. For timing system integrity, Cloyes recommends replacing the chain, tensioners, guides, and sprockets together during service. This part cross-references Four Seasons 96100 for the same application.

What It Helps Address

• Timing chain slack
• Chain noise from insufficient tension
• Irregular valve timing caused by worn tensioning components
• Timing system wear from aged guides or sprockets
• Service issues on Mazda MX-5 and Mazda MX-5 Miata timing systems

Installation Notes and Tips

Verify engine fitment before installation on the 2016-2020 Mazda MX-5 or 2016-2020 Mazda MX-5 Miata. Inspect the timing chain, guides, and sprockets for wear before reassembly, and replace related components as part of a complete timing service. Follow the vehicle service procedure for activation pin handling and timing alignment.

Quality Assurance

Cloyes has supplied automotive timing system components since 1921 and backs its products with technical support and an industry-leading warranty. The 9-6100 is part of that timing-focused product lineup and is built for professional engine service.
