Cloyes 9-6106 Engine Timing Chain Guide - Upper

Cloyes Timing Chain Guide 9-6106

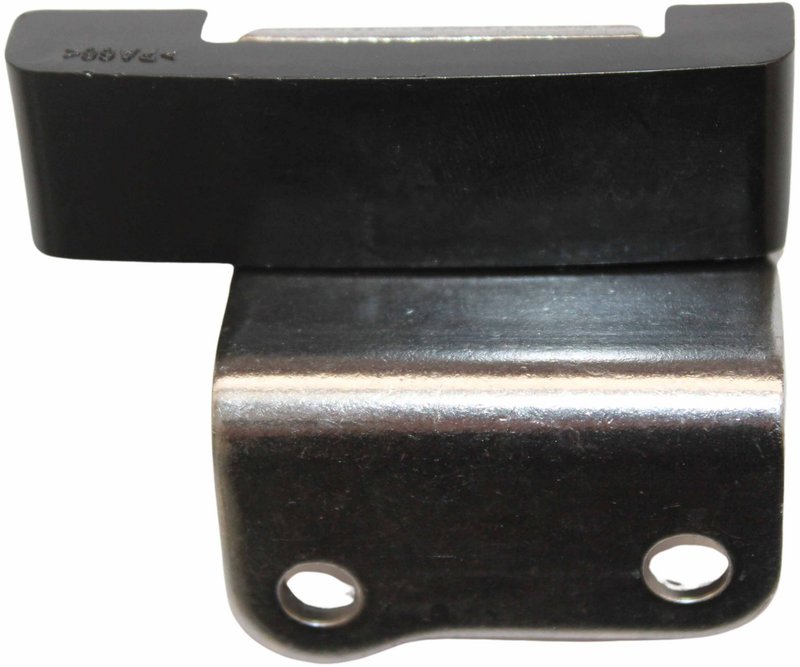

The Cloyes 9-6106 timing chain guide is an upper engine timing component built for Mazda applications that require precise chain tracking and stable valve timing. It uses a nylon wear surface with an included mounting bracket and shoe to support quiet, consistent operation in the timing system.

Key Features

• Engine timing chain guide for upper timing chain routing
• Nylon contact surface for controlled chain movement
• Mounting bracket included for direct installation
• Shoe included for timing chain contact support
• Two mounting holes with 0.250 in and 0.263 in diameters
• Dimensions: 2.5135 in length, 1.834 in height, 1.1405 in width
• Built for Mazda 3, Mazda 6, Mazda CX-5, and Mazda CX-9 upper timing applications

Detailed Description

Cloyes timing chain guides are engineered for timing system accuracy, helping maintain proper alignment between the crankshaft and camshaft. Part number 9-6106 is designed as an upper timing chain guide and uses durable nylon construction to reduce wear and support smooth chain travel. Cloyes has focused on timing system components since 1921, and this guide reflects that experience with a design intended to meet or exceed OEM performance expectations.

This part cross-references Four Seasons 96106 and PY0112611 for the same application. It fits 2014-2016 Mazda 3, upper; 2019 Mazda 3, upper; 2014-2016 Mazda CX-5, upper; 2019 Mazda CX-5, upper; 2014-2016 Mazda 6, upper; 2018 Mazda 6, upper; and 2016 Mazda CX-9, upper. If you are servicing a Mazda 3 timing chain guide, Mazda CX-5 upper guide, or Mazda 6 timing chain guide, 9-6106 is the type of component used to restore proper chain tracking.

What It Helps Address

• Timing chain noise caused by worn guide surfaces
• Chain misalignment in the upper timing system
• Excessive wear on timing chain components
• Inconsistent crankshaft-to-camshaft timing control
• Service needs during timing system repair on Mazda 3, Mazda 6, Mazda CX-5, and Mazda CX-9 engines

Installation Notes and Tips

Inspect the full timing assembly before installation. Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during timing service to maintain total system integrity. Verify upper-position fitment for your exact Mazda year and model before ordering, and confirm mounting hole size and guide dimensions against the original part.

Quality Assurance

Cloyes is a long-established timing systems brand with technical support and an industry-leading warranty backing its products. The 9-6106 timing chain guide is built with current material and design practices to support durable, quiet operation in the engine timing system.
