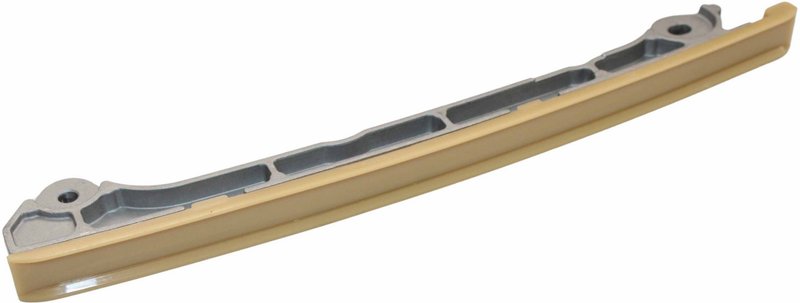

Cloyes 9-6107 Engine Timing Chain Guide - Lower

Cloyes Timing Chain Guide for Mazda Applications

The Cloyes 9-6107 timing chain guide is an engine timing chain guide built for lower timing system service on select Mazda vehicles. It uses a nylon wear surface with an included mounting bracket and shoe to help maintain chain alignment and stable timing chain tracking.

Cloyes timing chain guides are engineered with updated materials and design practices to support quiet operation and durable performance in the timing system. For timing chain service, Cloyes recommends replacing the chain, tensioners, guides, and sprockets together to maintain timing system integrity.

Key Features

• Nylon guide surface for timing chain contact
• Mounting bracket included
• Shoe included
• Two mounting holes for secure installation
• Dimensions: 12.25 in. length, 1.7495 in. height, 0.7265 in. width
• Mounting hole diameters: 0.250 in. and 0.342 in.
• Lower timing chain guide application

Detailed Description

Cloyes 9-6107 is a lower engine timing chain guide designed for Mazda 3, Mazda CX-5, Mazda 6, and Mazda CX-9 applications listed below. It helps guide the timing chain between the crankshaft and camshaft so the chain stays aligned during engine operation. This part cross-references NGK 96107 for the same application.

Compatible With: Fits 2014-2016 Mazda 3, lower; Fits 2019 Mazda 3, lower; Fits 2014-2016 Mazda CX-5, lower; Fits 2019 Mazda CX-5, lower; Fits 2014-2016 Mazda 6, lower; Fits 2018 Mazda 6, lower; Fits 2016 Mazda CX-9, lower. The Cloyes 9-6107 part number is also a useful reference when sourcing the correct timing chain guide for these Mazda engines.

What It Helps Address

• Timing chain noise from a worn guide surface
• Chain misalignment in the lower timing system
• Uneven chain tracking caused by guide wear
• Timing system service needs during engine repair
• Replacement of a damaged or deteriorated guide assembly

Installation Notes

Inspect the full timing system before installation. Cloyes recommends replacing the chain, tensioners, guides, and sprockets together during service to preserve timing system integrity. Verify lower-position fitment and confirm the mounting hole sizes and guide dimensions match the original part before assembly.

Quality Assurance

Cloyes has specialized in automotive timing systems since 1921 and backs its timing components with technical support and an industry-leading warranty. The 9-6107 is built to meet or exceed OEM performance expectations for timing chain guide service.
