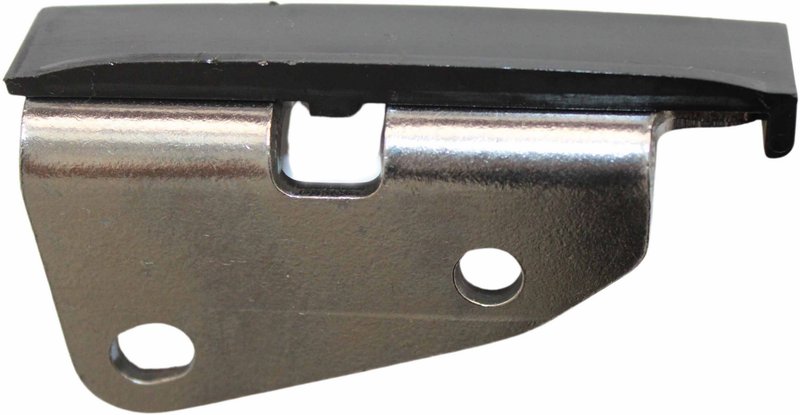

Cloyes 9-6110 Engine Oil Pump Chain Guide

Cloyes Oil Pump Chain Guide for Mazda Applications

The Cloyes 9-6110 oil pump chain guide is built for precise chain tracking in the engine oil pump drive system. It is a direct-fit service part for select Mazda 3, Mazda 6, and Mazda CX-5 applications, including 2014-2016 Mazda 3, 2014-2016 Mazda 6, 2014-2016 Mazda CX-5, and 2018 Mazda 6.

Key Features

• Engine oil pump chain guide for cylinder block service
• Nylon construction for controlled chain contact and reduced noise
• Measures 3.0295 in. long, 0.8045 in. wide, and 1.555 in. high
• Includes mounting bracket and shoe
• Mounting hole quantity: 2; mounting hole diameter: .249 in. and .3265 in.
• OE-style replacement from Cloyes, part number 9-6110

Product Details

Cloyes 9-6110 is an engine oil pump chain guide designed to keep the oil pump chain aligned as it travels through the drive system. The nylon guide surface supports quiet operation and consistent chain tracking, while the included bracket and shoe help match the original service layout. Cloyes has focused on timing-system components since 1921, and this oil pump chain guide reflects that experience in a service part made for Mazda engine applications. This part cross-references Four Seasons 96110 for the same application.

What This Part Helps Address

• Oil pump chain misalignment
• Chain noise from worn guide surfaces
• Uneven chain contact in the oil pump drive system
• Service replacement for damaged or worn guide components
• Restoring proper chain tracking during engine repair

Installation Notes

For total system integrity, Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during service. Verify the vehicle application before installation and confirm the guide matches the original mounting points and dimensions. Fits 2014-2016 Mazda 3, N/A; Fits 2014-2016 Mazda 6, N/A; Fits 2014-2016 Mazda CX-5, N/A; Fits 2018 Mazda 6, N/A.

Quality Assurance

Cloyes oil pump chain guides are engineered with current material and design technology to meet or exceed OEM performance expectations for quiet operation and durability. Backed by Cloyes technical support and an industry-leading warranty.
