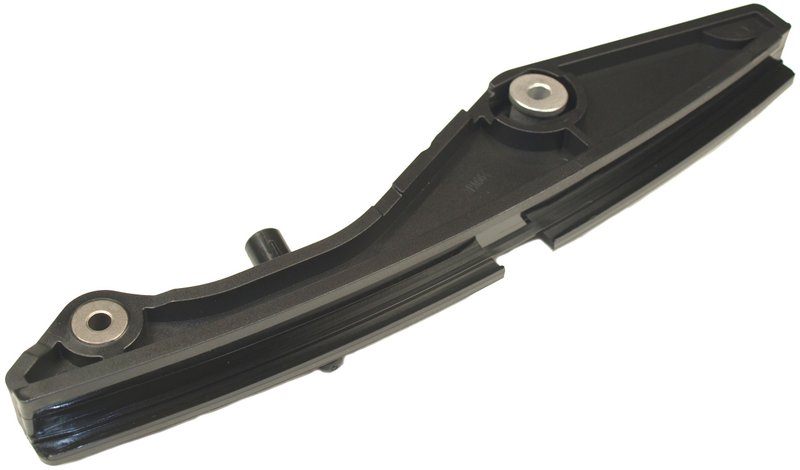

Cloyes 9-6111 Engine Timing Chain Guide - Left Lower

Cloyes Timing Chain Guide 9-6111

The Cloyes 9-6111 timing chain guide is an engine timing chain guide built for precise chain tracking between the crankshaft and camshaft. Made with a nylon wear surface and a mounting bracket and shoe included, it supports quiet operation and consistent timing control in service applications.

Key Features

• Nylon guide surface for controlled timing chain movement
• Mounting bracket included for direct replacement service
• Shoe included for proper chain contact
• Two mounting holes with 0.24 in. diameter
• Measures 11.25 in. long, 2.21 in. wide, and 1.44 in. high
• Engine timing chain guide for OE-style timing system service

Product Details

Cloyes has focused on timing system components since 1921, and the 9-6111 reflects that experience in a replacement guide designed for timing chain alignment and durability. This part cross-references Four Seasons 96111 for the same application. It is used in timing system service on Ford Transit-150, Ford Transit-250, Ford Transit-350, Ford Transit-350 HD, Ford Explorer, and Ford F-150 applications where the left lower timing chain guide is specified. Compatible With 2020-2024 Ford Transit-150, left lower; 2020-2024 Ford Transit-250, left lower; 2020-2024 Ford Transit-350, left lower; 2020-2024 Ford Transit-350 HD, left lower; 2020 Ford Explorer, left lower; and 2018-2020 Ford F-150, left lower.

Common Issues This Part Addresses

• Timing chain noise from a worn guide surface
• Chain misalignment in the left lower timing path
• Excessive wear on timing system components
• Loss of proper chain tracking during engine operation
• Service replacement for damaged or deteriorated guide material

Installation Notes and Tips

For timing system service, inspect the chain, tensioners, guides, and sprockets together before reassembly. Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during service to maintain timing system integrity. Verify engine code, position, and fitment before installation on Ford Transit-150, Ford Transit-250, Ford Transit-350, Ford Transit-350 HD, Ford Explorer, or Ford F-150 applications.

Quality Assurance

Cloyes timing system components are engineered with current material and design technology to meet or exceed OEM performance expectations for quiet operation and durability. The brand backs its timing products with technical support and an industry-leading warranty.
