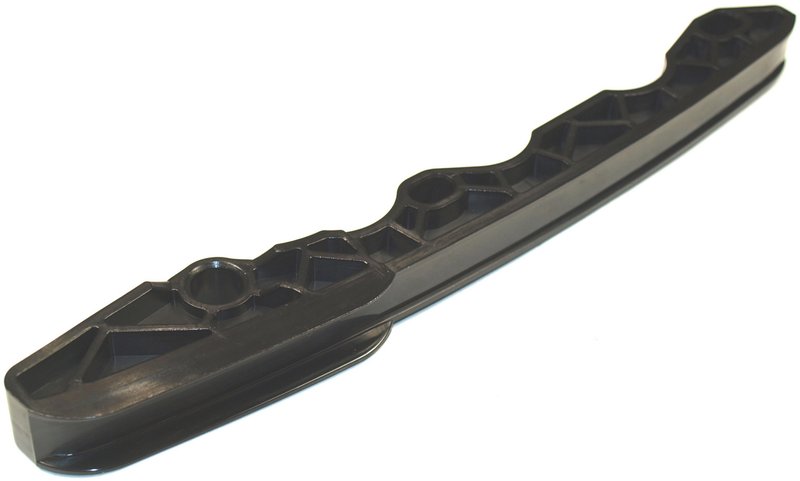

Cloyes 9-6112 Engine Timing Chain Guide - Center or Left Lower

Brand	Cloyes 9-6112
Position	Center and Left Lower
Material	Nylon
Length	10.136
Length	257.4544
Mounting Bracket Included	Yes
Height (uom:in)	1.516
Height (uom:mm)	38.5064
Mounting Hole Diameter (uom:in)	.336
Mounting Hole Diameter (uom:in)	.492
Mounting Hole Diameter (uom:in)	.581
Mounting Hole Diameter (uom:mm)	12.50, 8.53, 14.75
Mounting Hole Quantity	3
Shoe Included	Yes
Width (uom:in)	0.757
Width (uom:mm)	19.2278
Product line	Timing Chain Guide
Fits	Subaru · 75 vehicles

Timing chain guide. Keeps the chain aligned for proper timing and quiet operation.

Nylon construction. Durable material helps meet or exceed OEM performance.

Mounting bracket included. Ready for a more complete timing system service.

Cross-references Four Seasons 96112 and 13144AA200 for the same application. See all 2.

$32.30Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Engine Timing Chain Guide options

Cloyes Timing Chain Guide 9-6112

The Cloyes 9-6112 timing chain guide is an engine timing chain guide built for Subaru applications that rely on precise chain tracking and stable camshaft-crankshaft synchronization. With a nylon wear surface, integrated mounting bracket, and shoe included, it is engineered for quiet operation and consistent chain control in service.

Key Features

Nylon guide surface for controlled chain movement and reduced noise
Mounting bracket included for direct installation support
Shoe included for proper chain contact and alignment
Three mounting holes with multiple hole diameters for application-specific fitment
Dimensions: 10.136 in. length, 1.516 in. height, 0.757 in. width
Built by Cloyes, a timing systems brand with more than a century of industry experience

Product Details

Cloyes timing chain guides are developed to maintain proper timing chain alignment between the crankshaft and camshaft. This helps preserve timing system integrity and supports quiet, stable operation in Subaru engines. The 9-6112 is a direct-fit timing chain guide for select Subaru Ascent, Legacy, Outback, Impreza, Crosstrek, Forester, WRX, BRZ, and XV Crosstrek applications, including 2019-2024 Subaru Ascent left lower timing chain guide service and 2015-2022 Subaru Forester center timing chain guide service. This part cross-references Four Seasons 96112 and Subaru 13144AA200 for the same application.

What It Is Used For

Chain noise caused by worn guide surfaces
Timing chain misalignment from degraded guide material
Uneven chain tracking in high-mileage Subaru timing systems
Service replacement for worn or damaged engine timing chain guide components
Restoring stable chain control during timing system repair

Installation Notes and Tips

For timing system service, inspect the chain, tensioners, guides, and sprockets together before reassembly. Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during service to help maintain total timing system integrity. Verify the mounting hole pattern, guide position, and engine application before installation on Subaru Impreza, Crosstrek, Forester, WRX, BRZ, Legacy, Outback, and Ascent models.

Quality Assurance

Cloyes has supplied automotive timing components since 1921 and backs its timing products with technical support and an industry-leading warranty. The 9-6112 is built to meet or exceed OEM performance expectations for durability and quiet operation.

This part fits 75 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Position	Notes
2024	Subaru	Ascent	2.4L	H4	Left Lower	Timing Chain Guide
2024	Subaru	Legacy	2.4L	H4	Left Lower	Timing Chain Guide
2024	Subaru	Outback	2.4L	H4	Left Lower	Timing Chain Guide
2023	Subaru	Ascent	2.4L	H4	Left Lower	Timing Chain Guide
2023	Subaru	Impreza	2.0L	H4	N/A	Timing Chain Guide
2023	Subaru	Legacy	2.4L	H4	Left Lower	Timing Chain Guide
2023	Subaru	Outback	2.4L	H4	Left Lower	Timing Chain Guide
2022	Subaru	Ascent	2.4L	H4	Left Lower	Timing Chain Guide
2022	Subaru	Crosstrek	2.0L	H4	Center	Timing Chain Guide
2022	Subaru	Forester	2.5L	H4	Center	Timing Chain Guide
2022	Subaru	Impreza	2.0L	H4	N/A	Timing Chain Guide
2022	Subaru	Legacy	2.4L	H4	Left Lower	Timing Chain Guide
2022	Subaru	Outback	2.4L	H4	Left Lower	Timing Chain Guide
2021	Subaru	Ascent	2.4L	H4	Left Lower	Timing Chain Guide
2021	Subaru	Crosstrek	2.0L	H4	Center	Timing Chain Guide
2021	Subaru	Forester	2.5L	H4	Center	Timing Chain Guide
2021	Subaru	Impreza	2.0L	H4	N/A	Timing Chain Guide
2021	Subaru	Legacy	2.4L	H4	Left Lower	Timing Chain Guide
2021	Subaru	Outback	2.4L	H4	Left Lower	Timing Chain Guide
2021	Subaru	WRX	2.0L	H4	Center	Timing Chain Guide
2020	Subaru	Ascent	2.4L	H4	Left Lower	Timing Chain Guide
2020	Subaru	Crosstrek	2.0L	H4	Center	Timing Chain Guide
2020	Subaru	Forester	2.5L	H4	Center	Timing Chain Guide
2020	Subaru	Impreza	2.0L	H4	N/A	Timing Chain Guide
2020	Subaru	Legacy	2.4L	H4	Left Lower	Timing Chain Guide
2020	Subaru	Outback	2.4L	H4	Left Lower	Timing Chain Guide
2020	Subaru	WRX	2.0L	H4	Center	Timing Chain Guide
2019	Subaru	Ascent	2.4L	H4	Left Lower	Timing Chain Guide
2019	Subaru	Crosstrek	2.0L	H4	Center	Timing Chain Guide
2019	Subaru	Forester	2.5L	H4	Center	Timing Chain Guide
2019	Subaru	Impreza	2.0L	H4	N/A	Timing Chain Guide
2019	Subaru	Legacy	2.5L	H4	N/A	Timing Chain Guide
2019	Subaru	Outback	2.5L	H4	N/A	Timing Chain Guide
2019	Subaru	WRX	2.0L	H4	Center	Timing Chain Guide
2018	Subaru	BRZ	2.0L	H4	N/A	Timing Chain Guide
2018	Subaru	Crosstrek	2.0L	H4	N/A	Timing Chain Guide
2018	Subaru	Forester	2.0L	H4	Center	Timing Chain Guide
2018	Subaru	Impreza	2.0L	H4	N/A	Timing Chain Guide
2018	Subaru	Legacy	2.5L	H4	N/A	Timing Chain Guide
2018	Subaru	Outback	2.5L	H4	N/A	Timing Chain Guide
2018	Subaru	WRX	2.0L	H4	Center	Timing Chain Guide
2017	Subaru	BRZ	2.0L	H4	N/A	Timing Chain Guide
2017	Subaru	Crosstrek	2.0L	H4	N/A	Timing Chain Guide
2017	Subaru	Forester	2.0L	H4	Center	Timing Chain Guide
2017	Subaru	Impreza	2.0L	H4	N/A	Timing Chain Guide
2017	Subaru	Legacy	2.5L	H4	N/A	Timing Chain Guide
2017	Subaru	Outback	2.5L	H4	N/A	Timing Chain Guide
2017	Subaru	WRX	2.0L	H4	Center	Timing Chain Guide
2016	Subaru	BRZ	2.0L	H4	N/A	Timing Chain Guide
2016	Subaru	Crosstrek	2.0L	H4	N/A	Timing Chain Guide
2016	Subaru	Forester	2.0L	H4	Center	Timing Chain Guide
2016	Subaru	Impreza	2.0L	H4	N/A	Timing Chain Guide
2016	Subaru	Legacy	2.5L	H4	N/A	Timing Chain Guide
2016	Subaru	Outback	2.5L	H4	N/A	Timing Chain Guide
2016	Subaru	WRX	2.0L	H4	Center	Timing Chain Guide
2015	Subaru	BRZ	2.0L	H4	N/A	Timing Chain Guide
2015	Subaru	Forester	2.0L	H4	Center	Timing Chain Guide
2015	Subaru	Impreza	2.0L	H4	N/A	Timing Chain Guide
2015	Subaru	Legacy	2.5L	H4	N/A	Timing Chain Guide
2015	Subaru	Outback	2.5L	H4	N/A	Timing Chain Guide
2015	Subaru	WRX	2.0L	H4	Center	Timing Chain Guide
2015	Subaru	XV Crosstrek	2.0L	H4	N/A	Timing Chain Guide
2014	Subaru	BRZ	2.0L	H4	N/A	Timing Chain Guide
2014	Subaru	Forester	2.5L	H4	N/A	Timing Chain Guide
2014	Subaru	Impreza	2.0L	H4	N/A	Timing Chain Guide
2014	Subaru	Legacy	2.5L	H4	N/A	Timing Chain Guide
2014	Subaru	Outback	2.5L	H4	N/A	Timing Chain Guide
2014	Subaru	XV Crosstrek	2.0L	H4	N/A	Timing Chain Guide
2013	Subaru	BRZ	2.0L	H4	N/A	Timing Chain Guide
2013	Subaru	Forester	2.5L	H4	N/A	Timing Chain Guide
2013	Subaru	Impreza	2.0L	H4	N/A	Timing Chain Guide
2013	Subaru	Legacy	2.5L	H4	N/A	Timing Chain Guide
2013	Subaru	Outback	2.5L	H4	N/A	Timing Chain Guide
2013	Subaru	XV Crosstrek	2.0L	H4	N/A	Timing Chain Guide
2012	Subaru	Impreza	2.0L	H4	N/A	Timing Chain Guide
No rows match your filter.

Directly replaces or cross-references 2 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Four Seasons — 9611213144AA200
