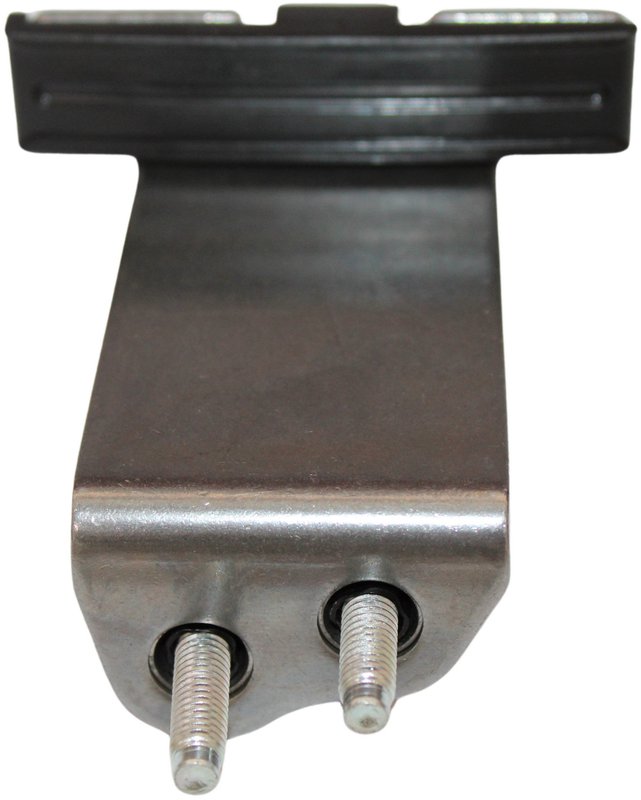

Cloyes 9-6125 Engine Timing Chain Guide - Upper

Cloyes Timing Chain Guide for Spark

The Cloyes 9-6125 timing chain guide is built for precise chain tracking in the engine valvetrain. It is a direct-fit upper timing chain guide for 2016-2022 Chevrolet Spark applications, helping maintain proper crankshaft and camshaft alignment.

Made from nylon and supplied with a mounting bracket and shoe, this Cloyes timing chain guide is engineered for quiet operation and durable service. Cloyes timing systems have been trusted since 1921, and the 9-6125 reflects that focus on OE-level timing control for Chevrolet Spark engines.

Key Features

• Engine timing chain guide for the upper position
• Fits 2016-2022 Chevrolet Spark, upper
• Nylon guide material for low-noise chain contact
• Includes mounting bracket and shoe
• Dimensions: 3.15 in length, 3.002 in width, 1.952 in height
• Two mounting holes for secure installation
• Part number 9-6125 for easy identification

Detailed Description

The Cloyes 9-6125 timing chain guide is designed to keep the timing chain properly aligned as it travels between the crankshaft and camshaft. In Chevrolet Spark engines, stable chain guidance is critical for maintaining timing accuracy and reducing chain noise. This upper guide uses nylon construction to support smooth chain movement and consistent wear characteristics in the timing system.

Cloyes timing chain guides are developed with current material and design technology to meet or exceed OEM performance expectations. For timing system service, Cloyes recommends replacing the chain, tensioners, guides, and sprockets together to help preserve timing system integrity. This part cross-references Four Seasons 96125 and OE reference 12645392 for the same application.

What It Helps Address

• Timing chain noise from a worn or damaged guide
• Chain misalignment in the upper timing system
• Excessive wear on timing components
• Timing instability in 2016-2022 Chevrolet Spark engines
• Service replacement for a deteriorated timing chain guide

Installation Notes and Tips

Verify engine application and upper guide location before installation. Inspect the timing chain, tensioners, and sprockets for wear during service, since related components can affect guide life and timing accuracy. Confirm mounting points and guide alignment during assembly to maintain proper chain tracking.

Quality Assurance

Cloyes has specialized in automotive timing systems since 1921 and backs its timing components with industry-leading technical support. The 9-6125 timing chain guide is built to support durable, quiet operation in Chevrolet Spark timing system service.
