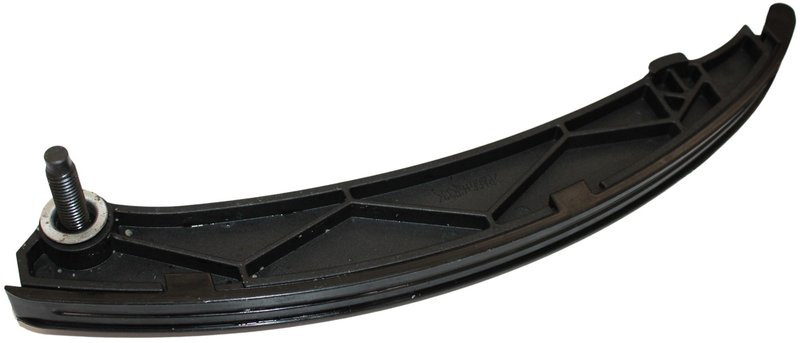

Cloyes 9-6126 Engine Timing Chain Tensioner Guide

Cloyes Timing Chain Tensioner Guide 9-6126

The Cloyes 9-6126 timing chain tensioner guide is built for precise chain control in the engine valve train. It helps maintain proper crankshaft and camshaft alignment for smooth timing operation in the 2016-2022 Chevrolet Spark.

Key Features

• Nylon guide surface for quiet timing chain operation
• Measures 10.375 in. long, 2.25 in. high, and 0.682 in. wide
• Includes mounting bracket and shoe
• Designed as an engine timing chain tensioner guide for valve train service
• Engineered to meet or exceed OEM performance expectations

Product Details

Cloyes has focused on timing systems since 1921, and the 9-6126 reflects that experience with materials and design intended for durability and consistent chain tracking. This timing chain tensioner guide serves as the track that supports the timing chain while helping maintain tension across the system. For total timing system integrity, Cloyes recommends replacing the chain, tensioners, guides, and sprockets together during service. This part cross-references Four Seasons 96126 and interchange number 12645390 for the same application.

What This Part Helps Address

• Timing chain noise caused by worn guide surfaces
• Chain misalignment in the valve train
• Irregular camshaft and crankshaft timing behavior
• Wear-related guide damage in high-mileage engines
• Service issues during timing chain maintenance on Chevrolet Spark models

Installation Notes and Tips

Fits 2016-2022 Chevrolet Spark, timing chain tensioner guide. Verify engine timing marks and inspect the full timing set before installation. Replace related timing components together when wear is present to help restore proper system alignment. The 9-6126 is a direct-fit timing chain guide for the listed Chevrolet Spark applications.

Quality Assurance

Cloyes timing chain guides are designed with current material and engineering standards to support quiet operation and long-term durability. Backed by Cloyes technical support and an industry-leading warranty.
