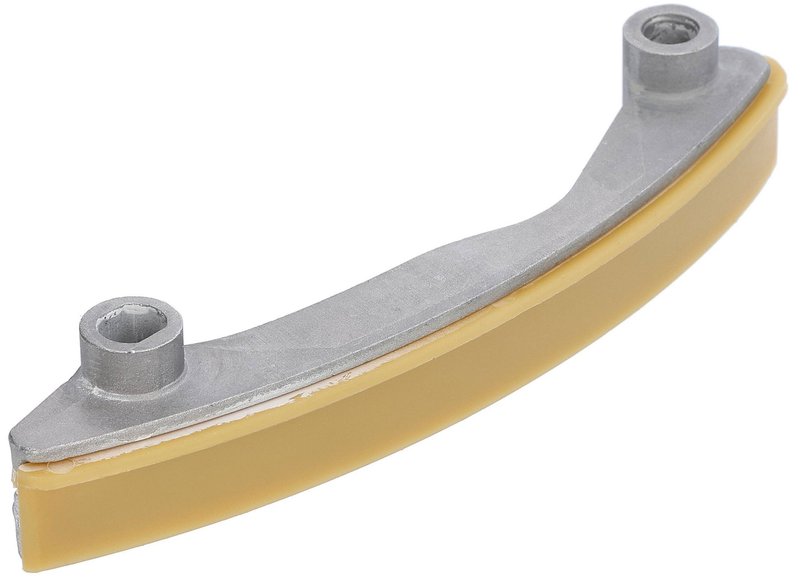

Cloyes 9-6128 Engine Timing Chain Guide - Right Upper

Cloyes Timing Chain Guide 9-6128

The Cloyes 9-6128 timing chain guide is built for engine timing service where chain alignment and quiet operation matter. This engine timing chain guide is a direct-fit style component for select Cadillac, Buick, and related applications with right upper placement.

Key Features

• Nylon guide surface for controlled timing chain tracking
• Mounting bracket included for proper guide support
• Shoe included for chain contact and alignment
• Two mounting holes with 0.32 in. diameter
• Measures 6.596 in. long, 1.208 in. wide, and 1.383 in. high
• Engine timing chain guide for right upper position

Product Details

Cloyes timing chain guide 9-6128 is part of the Cloyes Timing Chain Guide line, a product line focused on timing system service components for engine valve train applications. Cloyes uses updated material and design methods to help maintain proper chain tracking and reduce noise, while supporting timing accuracy between the crankshaft and camshaft. This part cross-references Four Seasons 96128 for the same application.

Compatible With select 2004-2007 Cadillac CTS, right upper; 2005-2007 Cadillac STS, right upper; 2005-2006 Buick Allure, right upper; 2005-2006 Buick LaCrosse, right upper; 2004-2006 Buick Rendezvous, right upper; and 2004-2006 Cadillac SRX, right upper. The Cloyes 9-6128 is a practical choice when servicing the timing chain guide on these vehicles.

Common Problems This Part Addresses

• Timing chain noise from a worn guide surface
• Chain misalignment in the upper timing system
• Guide wear that affects camshaft and crankshaft timing control
• Damage to the timing chain path from degraded nylon material
• Service issues caused by an aging right upper guide assembly

Installation Notes

For timing system service, inspect the chain, tensioners, guides, and sprockets together before reassembly. Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during service to maintain timing system integrity. Verify right upper placement and confirm mounting hole alignment before installation.

Quality Assurance

Cloyes has supplied automotive timing system components since 1921 and backs its products with technical support and an industry-leading warranty. The 9-6128 timing chain guide is engineered to meet or exceed OEM performance expectations for timing service.
