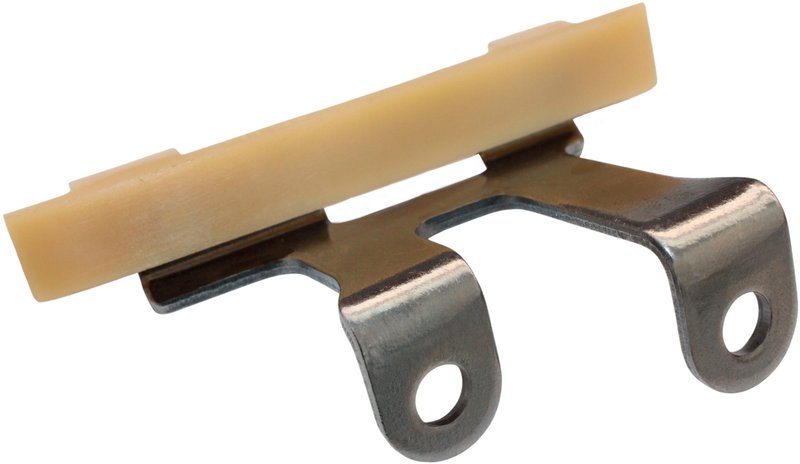

Cloyes 9-6142 Engine Timing Chain Guide - Upper

Cloyes Upper Timing Chain Guide for Honda and Acura

The Cloyes 9-6142 engine timing chain guide is built for upper timing system service on select Honda and Acura applications. It uses a nylon/steel construction with an included mounting bracket and shoe to help maintain timing chain alignment for consistent camshaft and crankshaft synchronization.

Key Features

• Nylon/steel construction for strength and controlled chain contact
• Upper timing chain guide design for precise chain tracking
• Mounting bracket included for direct service replacement
• Shoe included for proper chain guidance surface
• Two mounting holes with 7.21-7.23 mm diameter
• Measures 3.45 in. long, 1.386 in. wide, and 1.8705 in. high

Detailed Description

Cloyes 9-6142 is an upper engine timing chain guide engineered for timing systems that rely on accurate chain routing between the crankshaft and camshaft. The nylon/steel design helps reduce wear at the chain contact surface while supporting quiet operation and stable timing control. This part is a strong match for timing service on 2016-2024 Honda Civic, 2017-2024 Honda CR-V, 2018-2024 Honda Accord, and 2023-2024 Acura Integra upper timing applications. For buyers searching for a Honda Civic upper timing chain guide or a Honda Accord timing chain guide replacement, 9-6142 is built to meet the demands of modern overhead-cam engines.

This part cross-references 1454059B003 for the same application.

What It Helps Address

• Timing chain noise from a worn guide surface
• Chain misalignment in the upper timing system
• Uneven wear on timing components
• Loss of timing stability caused by guide deterioration
• Service needs during Honda Civic, Honda CR-V, Honda Accord, or Acura Integra timing repairs

Installation Notes and Tips

Inspect the full timing system before installation. Cloyes recommends replacing the chain, tensioners, guides, and sprockets together during service to maintain timing system integrity. Verify upper position fitment and mounting hole alignment before assembly, and follow the vehicle service procedure for torque and timing marks.

Quality Assurance

Cloyes has specialized in automotive timing systems since 1921 and backs its products with technical support and an industry-leading warranty. The 9-6142 is designed with current material and engineering standards to support durable timing service.
