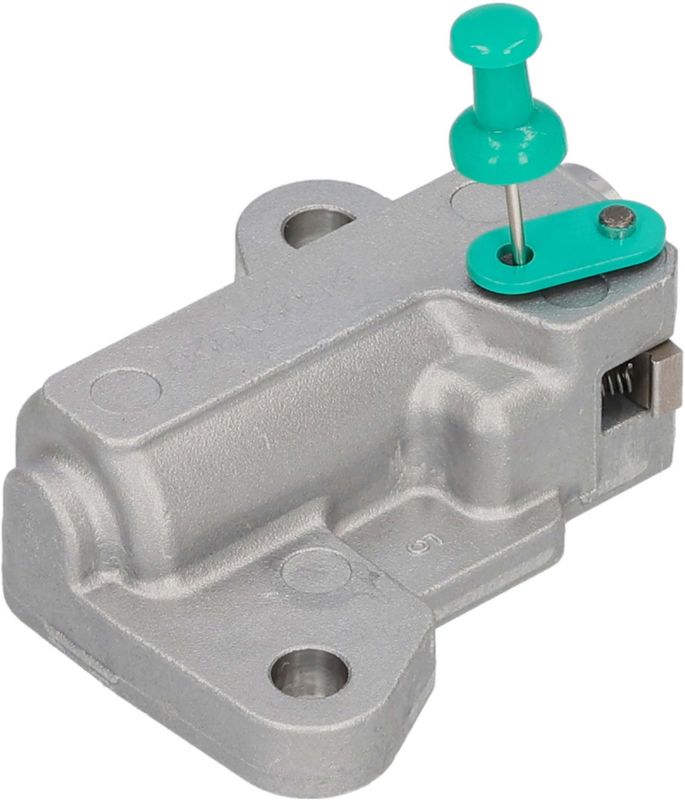

Cloyes 9-6167 Engine Timing Chain Tensioner - Left

Overview

Cloyes 9-6167 is an engine timing chain tensioner built for timing system service on select Subaru applications. It uses hydraulic and spring tension with an activation pin to maintain chain tension and support stable timing operation.

Compatible With Subaru Ascent, Legacy, and Outback applications listed below, this timing chain tensioner is a direct-fit service part for left-side timing chain tensioner applications. The Cloyes 9-6167 is identified by part number 9-6167 and cross-references 13142AA240 for the same application.

Key Features

• Hydraulic and spring tensioner design for controlled chain tension.
• Activation pin design for service handling during installation.
• Steel construction with an aluminum housing.
• No adjustable mechanism, gasket or seal, shoe, or hardware included.
• Two mounting holes with a 0.26 in. diameter.

Detailed Description

The Cloyes 9-6167 timing chain tensioner is engineered for timing chain service where consistent chain tension is critical. Its hydraulic and spring design helps maintain proper tension across operating conditions, while the activation pin supports controlled setup during installation. This part number 9-6167 is a fitment-specific replacement for Subaru timing system service and is listed for left-side applications on the Ascent, Legacy, and Outback.

Cloyes has focused on timing systems since 1921, and this product line is built around timing chain service components. For timing system integrity, the manufacturer recommends replacing the chain, tensioners, guides, and sprockets together during service. If you are servicing a Subaru Ascent, Legacy, or Outback timing system, 9-6167 provides a direct replacement path for the specified application.

Common Issues Addressed

• Timing chain slack or inconsistent chain tension.
• Noise related to worn timing chain tensioner components.
• Timing system service on a left-side application.
• Replacement of a worn or failed hydraulic/spring tensioner.

Installation Notes

Verify engine and application match before installation. Follow the manufacturer service procedure for timing alignment and activation pin handling. Cloyes recommends replacing the chain, guides, and sprockets during timing service to maintain system integrity. Confirm all mating components are in serviceable condition before reassembly.

Quality Assurance

Cloyes is a long-established timing system brand with technical support and an industry-leading warranty referenced by the manufacturer. Part number 9-6167 is built as a service replacement for the listed Subaru timing chain tensioner applications.
