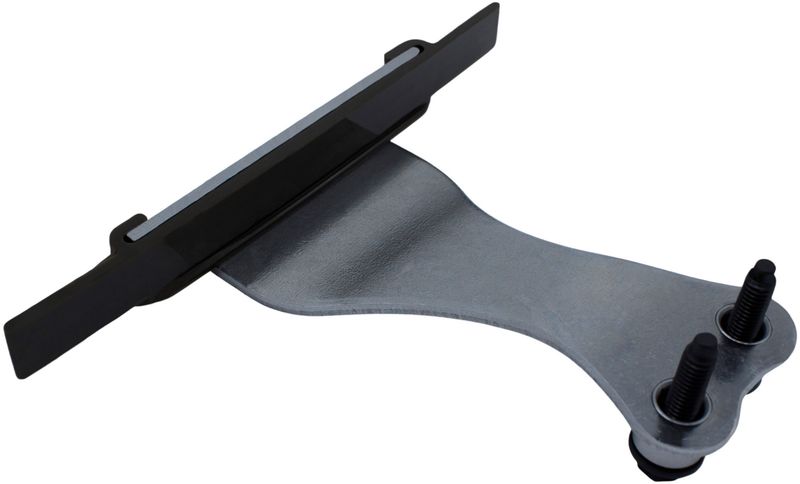

Cloyes 9-6181 Engine Timing Chain Guide - Upper

Overview

Cloyes 9-6181 is an upper engine timing chain guide for BMW applications that require precise chain tracking and stable camshaft timing. Built with steel and nylon construction, it is intended to support quiet operation and consistent timing system alignment in service.

This timing chain guide fits a wide range of BMW models, including 330i, X3, and 530i applications. If you are servicing an upper timing system on a BMW engine, 9-6181 is a direct-fit replacement designed around OE-style dimensions and mounting points.

Key Features

• Steel and nylon construction for strength and low-friction chain contact
• Upper timing chain guide design for chain tracking and alignment
• Mounting bracket included for service replacement
• Shoe included for proper chain contact surface
• Two mounting holes for secure installation

Detailed Description

The Cloyes 9-6181 timing chain guide is engineered for upper timing system service on BMW engines. It helps maintain the relationship between the crankshaft and camshaft by guiding the chain along its intended path, which is critical for accurate valve timing. Cloyes uses design and material updates aimed at durability and quiet operation, and this part cross-references OE number 11318693610 for the same application.

Compatible BMW fitment includes 2020-2024 330i, 2020-2024 X3, 2019-2023 530i, and additional upper-position applications across 228i, 230i, 430i, 840i, M340i, M440i, X4, X5, X6, X7, X1, X2, Z4, 740i, and 745e xDrive models. Use 9-6181 when replacing a worn or damaged upper guide in the timing system.

What It Helps Fix

• Timing chain noise from a worn guide surface
• Chain misalignment in the upper timing system
• Uneven chain tracking that can affect valve timing
• Wear-related damage to timing components
• Service issues caused by a cracked or deteriorated guide

Installation Notes

Install as part of a complete timing service when the chain, tensioners, guides, or sprockets show wear. Cloyes recommends renewing related timing components together to maintain system integrity. Verify engine application and upper-position fitment before installation.

Quality Assurance

Cloyes has supplied automotive timing systems since 1921 and backs its products with technical support and an industry-leading warranty. Part number 9-6181 is built to meet or exceed OEM performance expectations for timing system service.
